SF6-12/394 Miniature Gas Insulated Bushing: Compact 12kV fuse insulating cylinder for miniaturized ring main unit switchgear, 75kV impulse, 42kV withstand, 1.0×10⁻⁹ Pa·m³/s leakage.
Miniature SF6-12/394 Gas Insulated Bushing Design: Premium SF6-12/394 miniature model gas insulated bushing featuring ultra-compact design specifically engineered for 12kV dry sulfur hexafluoride inflatable switchgear and miniaturized ring main units, delivering exceptional electrical insulation with 42kV power frequency withstand and 75kV lightning impulse protection, ensuring ultra-low leakage rate of 1.0×10⁻⁹ Pa·m³/s for sealed SF6 gas compartments in space-critical and miniaturized power distribution installations.
Advanced Miniaturization Technology: SF6-12/394 incorporates specialized epoxy resin casting with surface-treated center conductor ensuring superior mechanical strength and gas-tight sealing performance in miniaturized form factor, engineered for optimized mounting configurations in compact 12kV inflatable switchgear systems, fully compatible with busbar assemblies, plug connectors, and sealing rings to provide complete integration solution for modern miniaturized SF6 gas insulated equipment and space-saving ring main unit applications.
Compact Switchgear Integration: SF6-12/394 miniature model supports next-generation compact ring main units and miniaturized SF6 switchgear installations with UL94 V1 flame retardant rating, 105±5°C glass transition temperature, and professional-grade dielectric properties including ≤0.2% hydroscopicity, 1.0×10¹⁴Ω insulation resistance, and ≥18kV/mm disruptive strength for reliable operation in demanding space-constrained power distribution environments, urban substations, and miniaturized electrical equipment applications.
| Selection | Drawing No. |

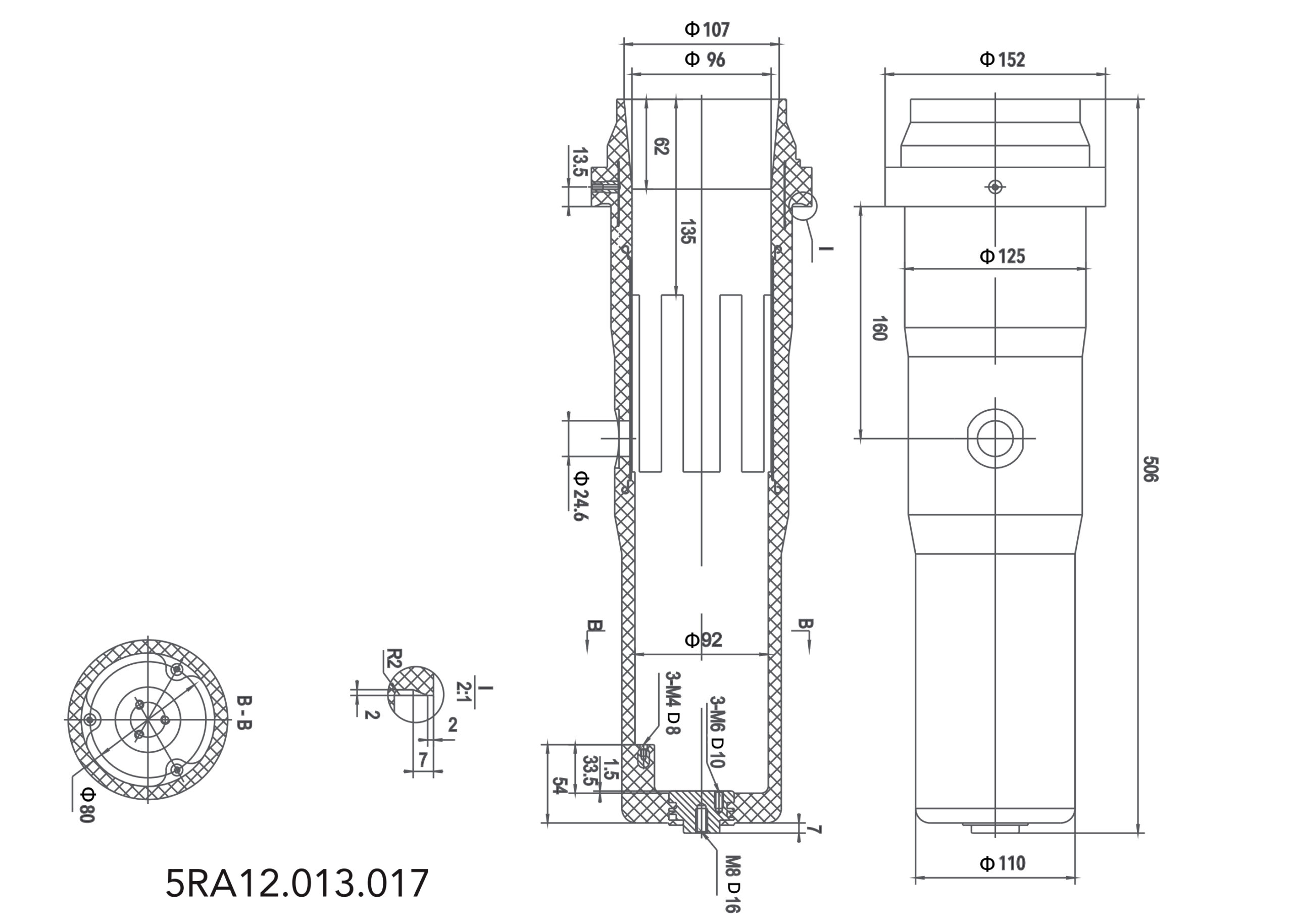

| SF6-12/394 | 5RA12.013.017 |
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Technical Parameter | PF | 42 | kV/1min |
| Technical Parameter | PD | 1.1Ur≤3 | pC |
| Technical Parameter | Flame Retardant Rating | V1 (Special Requirements) | UL94 |
| Technical Parameter | Tg | 105±5 | ℃ |
| Technical Parameter | Lightning Impulse | 75 | kV |
| Technical Parameter | Leakage Rate | 1.0×10⁻⁹ | Pa·m³/s |
| Technical Parameter | Color | Red | — |
| Raw Material Parameter | Hydroscopicity | ≤0.2 | % |
| Raw Material Parameter | Dielectric Loss | 0.01 | — |
| Raw Material Parameter | Insulation Resistance | 1.0×10¹⁴ | Ω |
| Raw Material Parameter | Disruptive Strength | ≥18 | kV/mm |
| Raw Material Parameter | Arc Resistance | 182 | s |
| Raw Material Parameter | Impact Strength | ≥7 | kJ/m² |
| Raw Material Parameter | Bending Strength | ≥110 | N/mm² |
