RZP5.028 Scalable Current Embedded Pole: 24kV switchgear, 1250A/1600A/2000A scalable current options, 31.5kA breaking, 3100N operating force, ≤21-25μΩ resistance.
| Drawing No. | Specification | Match The Insulated Pull Rod | Match The Radiation Frame |

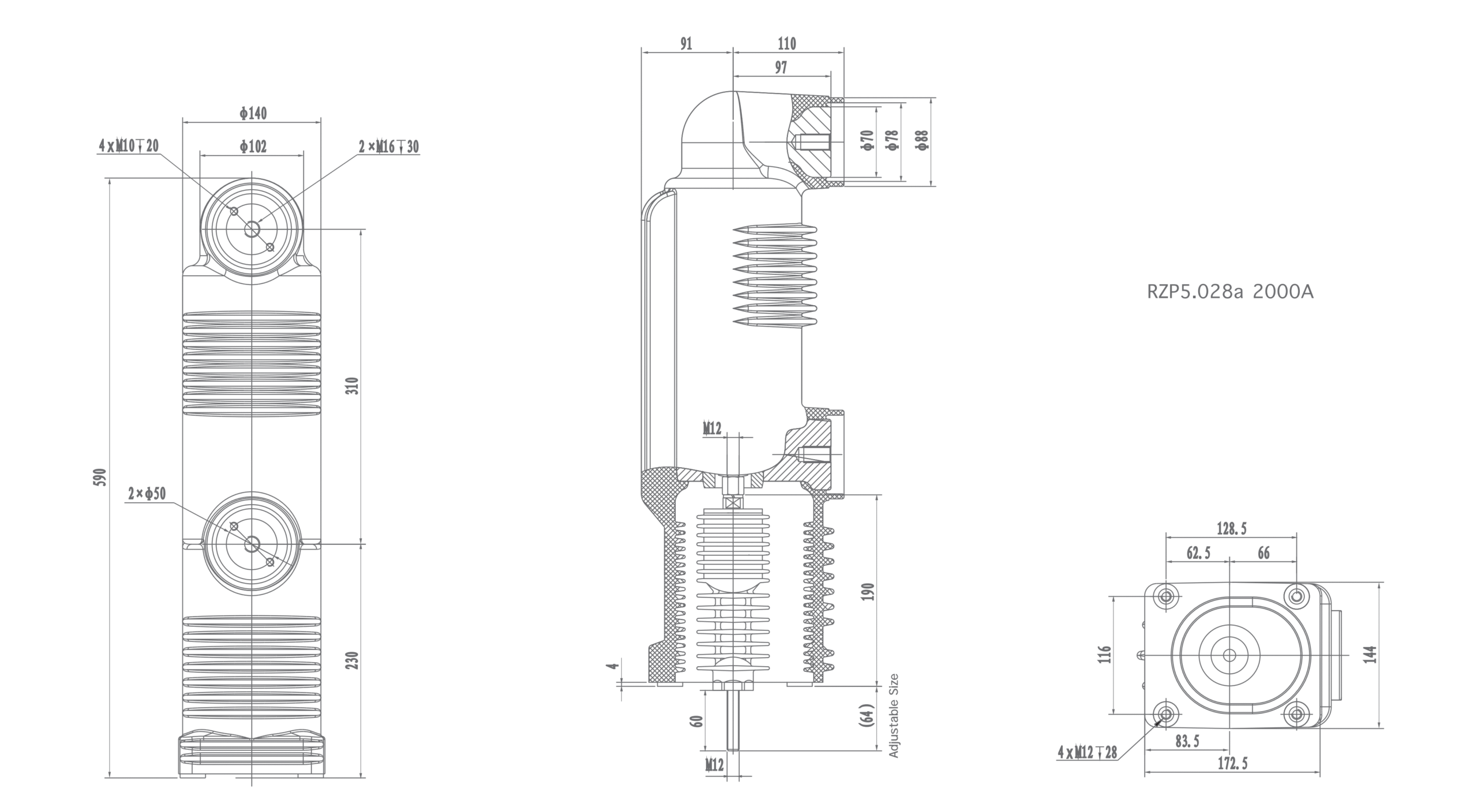

| RZP5.028a | EP24/2000-31.5 | RAP4.028c. 05 | RAP4.028a. 11 |
| Drawing No. | Specification | Match The Insulated Pull Rod | Match The Flexible Connection | Match The Contact Arm Sleeve |

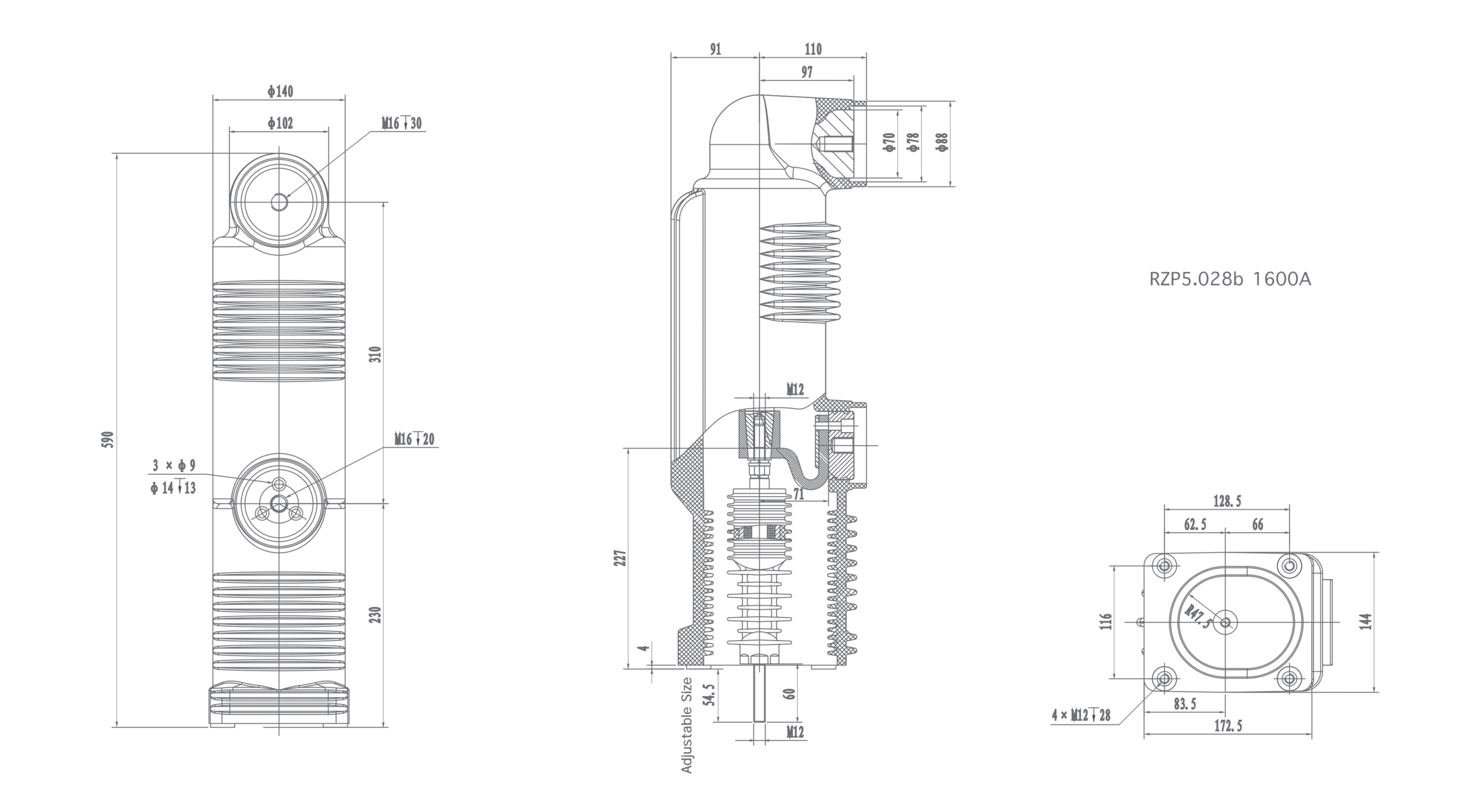

| RZP5.028b | EP24/1600-31.5 | RAP4.028c. 05 | RAP4.028b. 01 | RAP4.028b. 11 |
| Drawing No. | Specification | Match The Insulated Pull Rod | Match The Flexible Connection | Match The Contact Arm Sleeve |

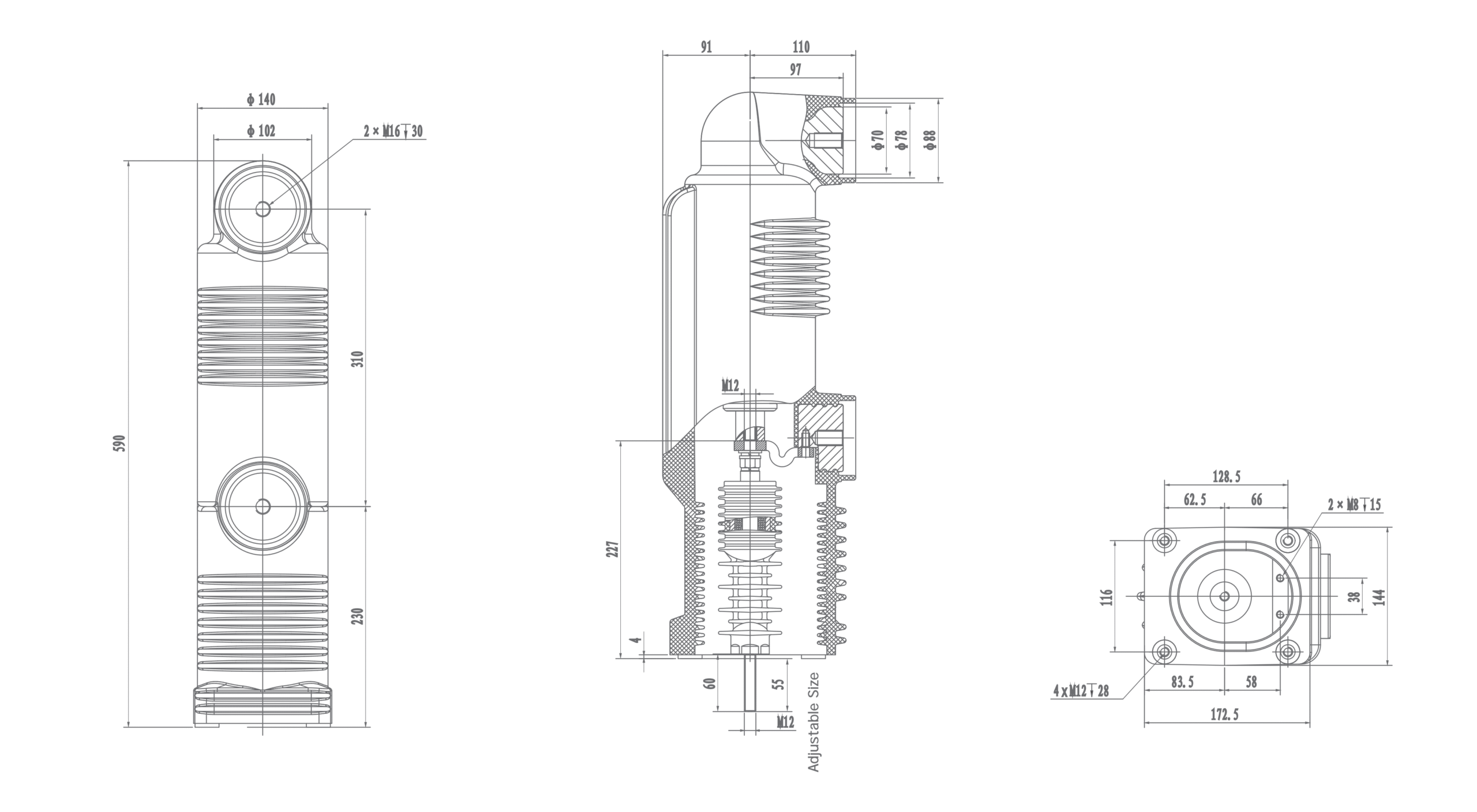

| RZP5.028c | EP24/1250-31.5 | RAP4.028c. 05 | RAP4.028c. 01 | RAP4.028c. 11 |
| Main Technical Data | ||||
| Technical Parameter | RZP5.028a | RZP5.028b | RZP5.028c | Unit |
| Rated voltage | 24 | 24 | 24 | kV |
| Rated current | 2000 | 1600 | 1250 | A |
| Rated frequency | 50 | 50 | 50 | Hz |
| Rated short-circuit breaking current | 31.5 | 31.5 | 31.5 | kA |
| Operations of short-circuit breaking current interruption | 30 | 30 | 30 | time |
| Rated short-circuit making current | 80 | 80 | 80 | kA |
| Rated peak withstand current | 80 | 80 | 80 | kA |
| Rated short-time withstand current (4s) | 31.5 | 31.5 | 31.5 | kA |
| Rated single capacitor bank breaking current | 630※ | 630※ | 630※ | A |
| Rated back-to-back capacitor breaking current | 400※ | 400※ | 400※ | A |
| Short-time (1min) power-frequency withstand voltage | 65 | 65 | 65 | kV |
| Lighting impulse withstand voltage (peak) | 125 | 125 | 125 | kV |
| Circuit resistance at rated contact force | ≤21 | ≤23 | ≤25 | μΩ |
| Mechanical life | 10,000 | 10,000 | 10,000 | time |
| Contact closing force due to bellows and atmosphere | 120±50 | 120±50 | 120±50 | N |
| Counterforce at rated contact stroke | 200±50 | 200±50 | 200±50 | N |
| Contact limit erosion | 3 | 3 | 3 | mm |
| Shelf life | 20 | 20 | 20 | year |
| Partial discharge | ≤1 | ≤1 | ≤1 | pC |
| Rated operating sequence | 0-0.3s-co-180s-co | 0-0.3s-co-180s-co | 0-0.3s-co-180s-co | – |
| Mechanical Data Of Circuit Equipped With Interrupters | ||||
| Mechanical Parameter | RZP5.028a | RZP5.028b | RZP5.028c | Unit |
| Rated contact stroke | 12±1 | 12±1 | 12±1 | mm |
| Contact connection stroke | 3±1 | 3±1 | 3±1 | mm |
| Average opening speed | 1.1～1.5 | 1.1～1.5 | 1.1～1.5 | m/s |
| Average closing speed | 0.4～0.8 | 0.4～0.8 | 0.4～0.8 | m/s |
| Rated operation pressure of contact | 3100±200 | 3100±200 | 3100±200 | N |
| Bounce duration of contact closing | ≤2 | ≤2 | ≤2 | ms |
| Out of simultaneity of contact closing and opening | ≤1 | ≤1 | ≤1 | ms |
| Max. overtravel | ≤2 | ≤2 | ≤2 | mm |
“※”Rated characteristics to be given on requeset
