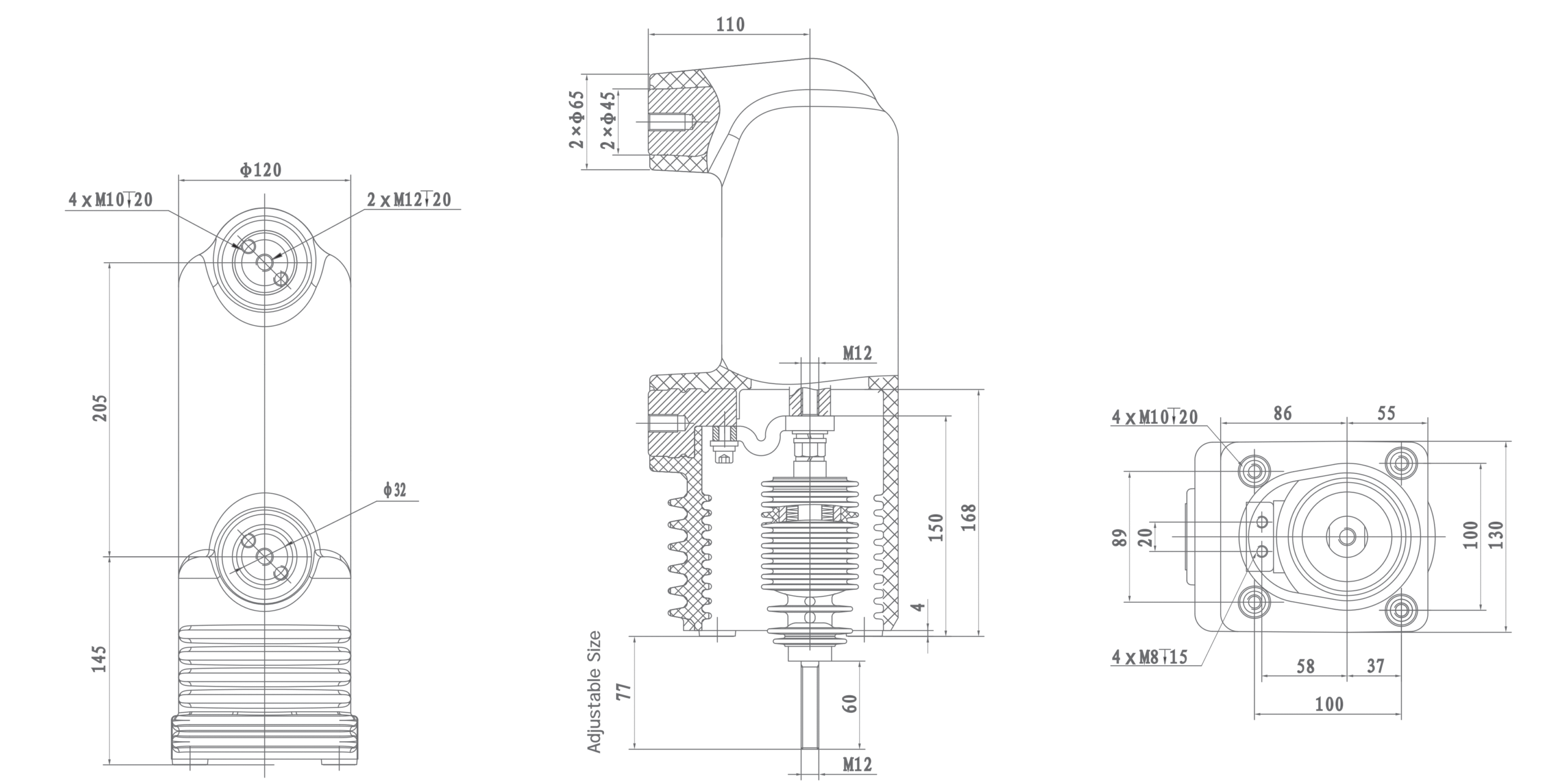

Bepto RZP5.027 12kV Encapsulated Pole Unit 1250A with 25-31.5kA breaking capacity. VEG gas-insulated switchgear featuring 30,000 operations, 20-year shelf life.
| Drawing No. | Specification | Match The Insulated Pull Rod | Match The Radiation Frame |
| RZP5. 027c | EP/VEG12/1250-25 | RAP4.027b. 05 | RAP4. 047a.01 |
| RZP5. 027d | EP/VEG12/1250-31.5 | RAP4.027b. 05 | RAP4. 047a.01 |
| Main Technical Data | |||
| Data | Value | Unit | |
| Rated voltage | 12 | kV | |
| Rated current | 1250 | A | |
| Rated frequency | 50 | Hz | |
| Rated short-circuit breaking current | 25 | 31.5 | kA |
| Operations of short-circuit breaking current interruption | 30 | time | |
| Rated short-circuit making current | 63 | 80 | kA |
| Rated peak withstand current | 63 | 80 | kA |
| Rated short-time withstand current（4s） | 25 | 31.5 | kA |
| Rated single capacitor bank breaking current | 630 ※ | A | |
| Rated back-to-back capacitor breaking current | 400 ※ | A | |
| Short-time(1min) power-frequency withstand voltage | 48 | kV | |
| Lighting impulse withstand voltage(peak) | 75 | kV | |
| Circuit resistance at rated contact force | ≤25 | μΩ | |
| Mechanical life | 30,000 | time | |
| Contact closing force due to bellows and atmosphere | 120±50 | N | |
| Counterforve at rated contact stroke | 180±50 | N | |
| Contact limit erosion | 3 | mm | |
| Shelf life | 20 | year | |
| partial discharge | ≤1 | pC | |
| Rated operating sequence | 0-0.3s-co-180s-co | ||
| Mechanical Data Of Circuit Equipped With Interrupters | ||
| Data | Value | Unit |
| Rated contact stroke | 9±1 | mm |
| Contact connection stroke | 3±1 | mm |
| Average opening speed | 0.9~1.3 | m/s |
| Average closing speed | 0.4~0.8 | m/s |
| Rated operation pressure of contact | 3100±200 | N |
| Bounce duration of contact closing | ≤2 | ms |
| Out of simultaneity of contact closing and opening | ≤1 | ms |
| Max. overtravel | ≤2 | mm |
“※”Rated characteristics to be given on requeset
