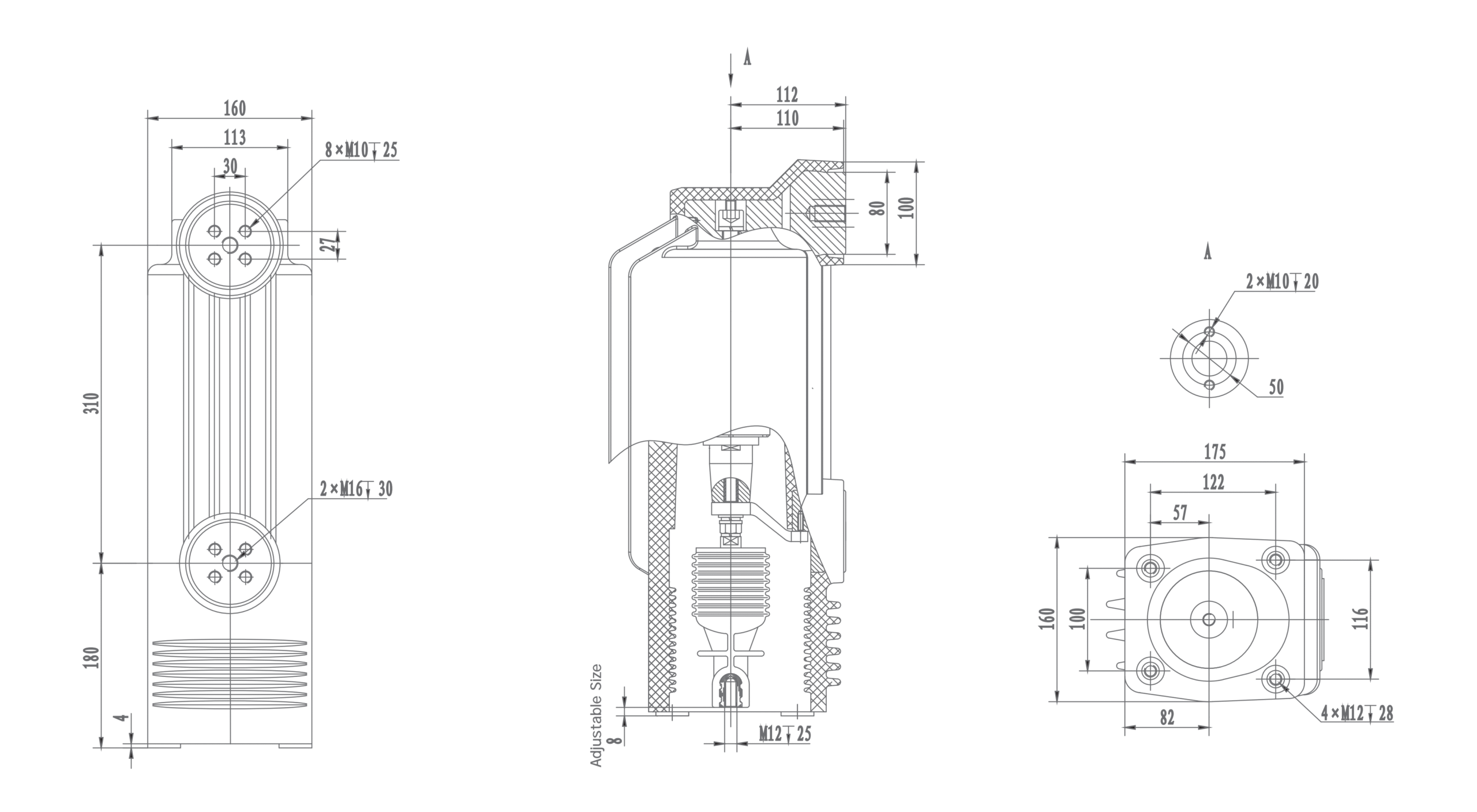

Bepto RZP5.076e 12kV Embedded Pole: 1250A medium voltage distribution, enhanced 7500N contact pressure, 50kA breaking capacity, ≤25μΩ optimized resistance.
| Drawing No. | Specification | Match The Insulated Pull Rod | Match The Flexible Connection | Match The Contact Arm Sleeve |
| RZP5.076e | EP12/ 1250- 50 | RAP4.076b. 08 | RAP4.076e. 01 | RAP4.110b. 11 |
| Main Technical Data | ||
| Data | Value | Unit |
| Rated voltage | 12 | kV |
| Rated current | 1250 | A |
| Rated frequency | 50 | Hz |
| Rated short-circuit breaking current | 50 | kA |
| Operations of short-circuit breaking current interruption | 30 | time |
| Rated short-circuit making current | 125 | kA |
| Rated peak withstand current | 125 | kA |
| Rated short-time withstand current（4s） | 50 | kA |
| Rated single capacitor bank breaking current | 630 ※ | A |
| Rated back-to-back capacitor breaking current | 400 ※ | A |
| Short-time(1min) power-frequency withstand voltage | 48 | kV |
| Lighting impulse withstand voltage(peak) | 75 | kV |
| Circuit resistance at rated contact force | ≤25 | μΩ |
| Mechanical life | 30,000 | time |
| Contact closing force due to bellows and atmosphere | 250±60 | N |
| Counterforve at rated contact stroke | 360±60 | N |
| Contact limit erosion | 3 | mm |
| Shelf life | 20 | year |
| partial discharge | ≤1 | pC |
| Rated operating sequence | 0-0.3s-co-180s-co | |
| Mechanical Data Of Circuit Equipped With Interrupters | ||
| Data | Value | Unit |
| Rated contact stroke | 9±1 | mm |
| Contact connection stroke | 3±1 | mm |
| Average opening speed | 0.9~1.3 | m/s |
| Average closing speed | 0.4~0.8 | m/s |
| Rated operation pressure of contact | 7500±500 | N |
| Bounce duration of contact closing | ≤2 | ms |
| Out of simultaneity of contact closing and opening | ≤1 | ms |
| Max. overtravel | ≤2 | mm |
“※”Rated characteristics to be given on requeset
