RZP5.047a High Voltage Embedded Pole: 24kV premium distribution, 1250A current, 1.7m/s high-speed opening, 125kV lightning impulse withstand, 20-year reliability.

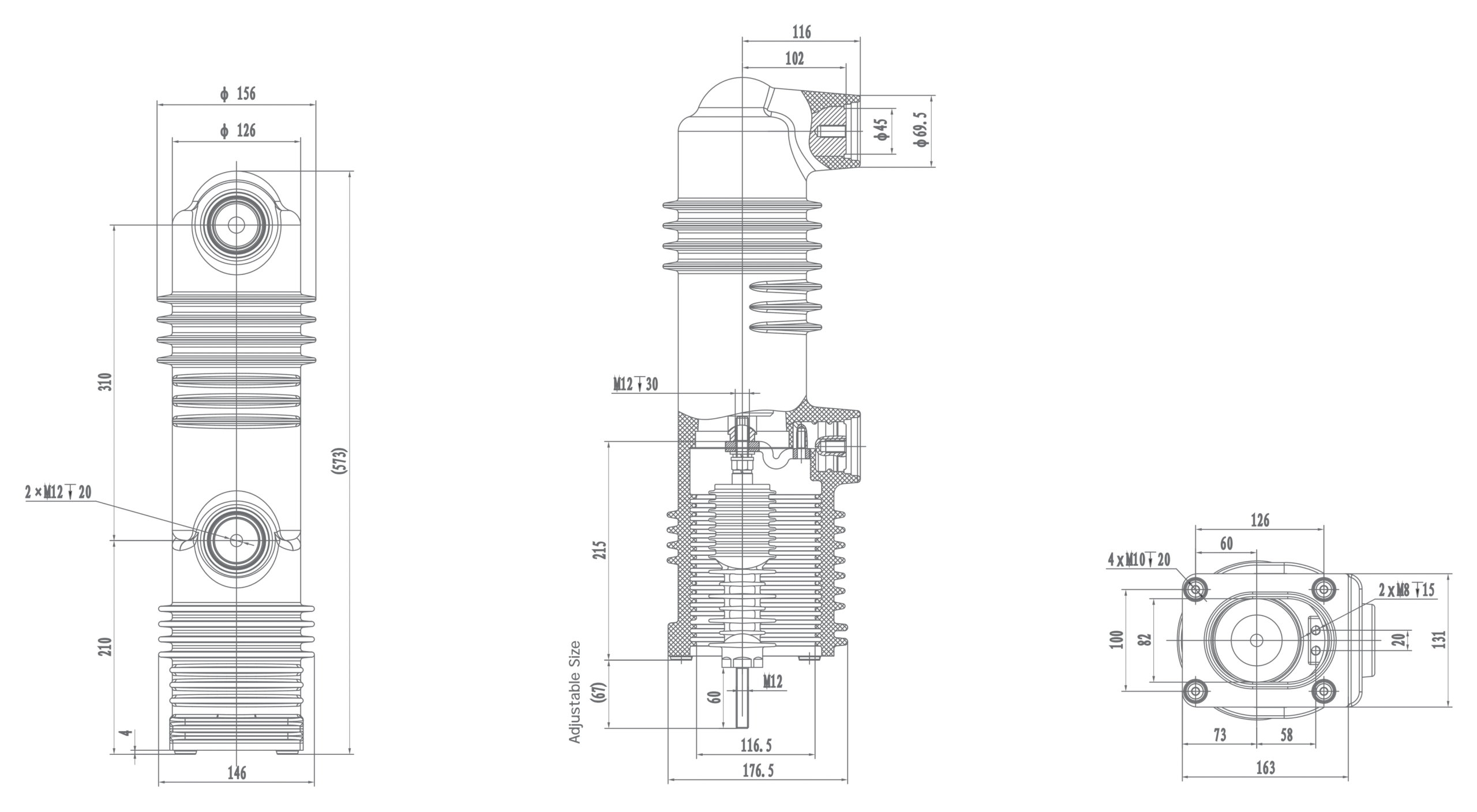

| Drawing No. | Specification | Match The Insulated Pull Rod | Match The Radiation Frame |
| RZP5.047a | EP24/1250-25 | RAP4. 028c. 05 | RAP4. 047a. 01 |
| Main Technical Data | ||
| Data | Value | Unit |
| Rated voltage | 24 | kV |
| Rated current | 1250 | A |
| Rated frequency | 50 | Hz |
| Rated short-circuit breaking current | 25 | kA |
| Operations of short-circuit breaking current interruption | 30 | time |
| Rated short-circuit making current | 63 | kA |
| Rated peak withstand current | 63 | kA |
| Rated short-time withstand current（4s） | 25 | kA |
| Rated single capacitor bank breaking current | 630※ | A |
| Rated back-to-back capacitor breaking current | 400※ | A |
| Short-time(1min) power-frequency withstand voltage | 65 | kV |
| Lighting impulse withstand voltage(peak) | 125 | kV |
| Circuit resistance at rated contact force | ≤25 | μΩ |
| Mechanical life | 10,000 | time |
| Contact closing force due to bellows and atmosphere | 100±30 | N |
| Counterforve at rated contact stroke | 200±30 | N |
| Contact limit erosion | 3 | mm |
| Shelf life | 20 | year |
| Partial discharge | ≤1 | pC |
| Rated operating sequence | 0-0.3s-co-180s-co | |
| Mechanical Data Of Circuit Equipped With Interrupters | ||
| Data | Value | Unit |
| Rated contact stroke | 12±1 | mm |
| Contact connection stroke | 3±1 | mm |
| Average opening speed | 1.1～1.7 | m/s |
| Average closing speed | 0.8～1.2 | m/s |
| Rated operation pressure of contact | 2400±200 | N |
| Bounce duration of contact closing | ≤2 | ms |
| Out of simultaneity of contact closing and opening | ≤1 | ms |
| Max. overtravel | ≤2 | mm |
“※”Rated characteristics to be given on requeset
