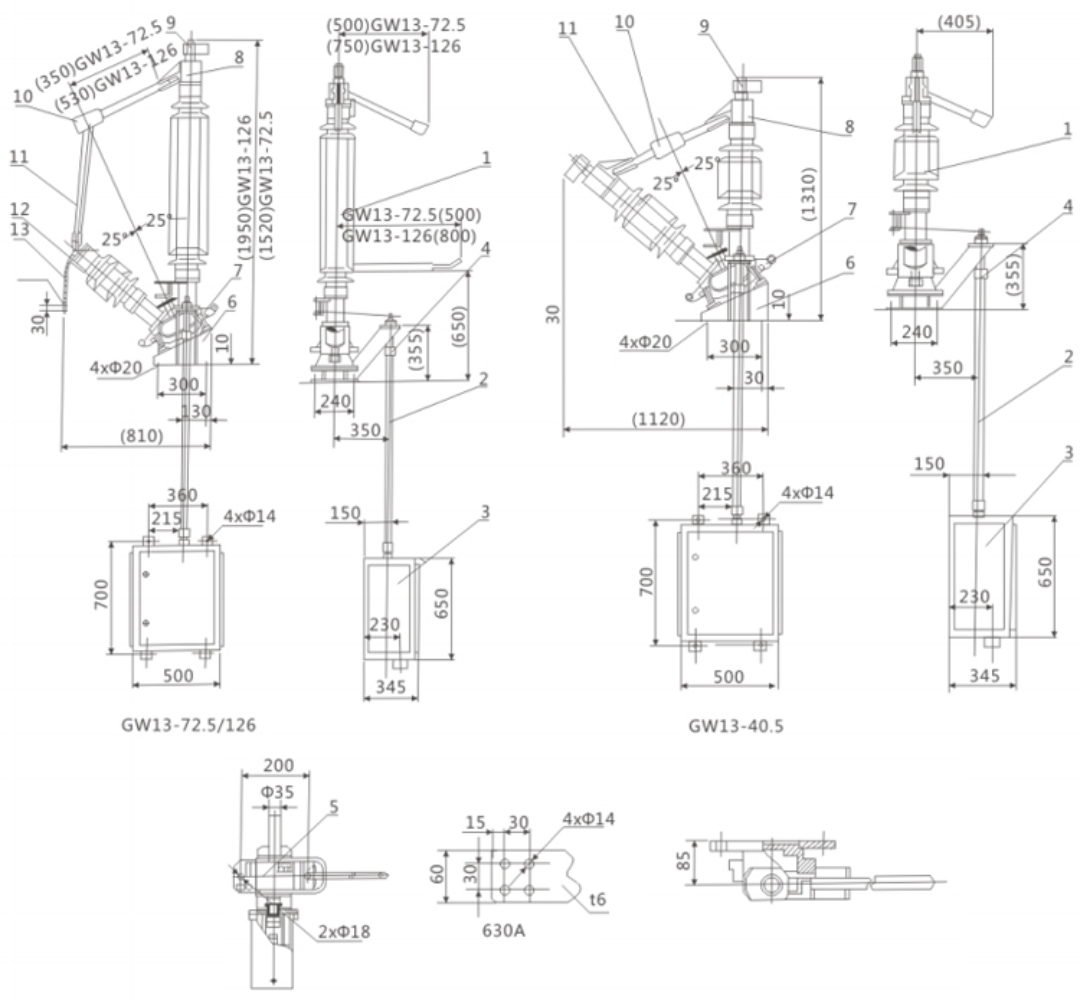

GW13 Outdoor Neutral Disconnecting Switch 40.5-126kV 630A: 50° pillar insulator intersection angle, 25° tilted bracket, base mounting, shaft connection to operating mechanism, CS17G manual or CJ6 electric mechanism, bracket pillar insulator contact wiring board composition, neutral point application.
Advanced GW13 Neutral Disconnecting Switch Series: Outdoor neutral disconnecting switch rated 40.5kV/72.5kV/126kV with 630A current suitable for neutral point isolation applications, isolating switch consists of bracket, base, pillar insulator, contact and wiring board, pillar insulator and conductive part installed on base with intersection angle of two pillar insulators at 50°, base fixed on bracket tilted 25° providing unique installation geometry, bracket equipped with shaft connected to operating mechanism, can be equipped with CS17G manual operating mechanism or electric mechanism such as CJ6.
Unique Tilted Bracket and Flexible Mechanism Configuration: GW13-40.5/72.5/126 series incorporates innovative 50° pillar insulator intersection angle design with 25° tilted bracket mounting ensuring optimal electrical clearance and mechanical stability for neutral point applications, bracket with shaft connection enabling smooth operation with CS17G manual operating mechanism for manual operation or CJ6 electric mechanism for remote automatic operation, provides voltage options 40.5kV/72.5kV/126kV meeting diverse neutral point disconnecting requirements, ordering requires specification of model, environmental conditions (ambient temperature, altitude, pollution level), operating mechanism model and spare parts requirements, providing reliable outdoor neutral disconnecting switch solution for 40.5-126kV power system neutral point isolation.
| GW13 Outdoor Neutral Disconnecting Switch Specifications | Parameter | Unit |
|---|---|---|
| Brand | Bepto Insulation Systems | – |
| Model Number | GW13-40.5 / GW13-72.5 / GW13-126 | – |
| Category | Switchgear & Neutral Disconnecting Switch | – |
| Product Type | Outdoor Neutral Disconnecting Switch (40.5-126kV 630A) with 50° Pillar Insulator Intersection, 25° Tilted Bracket, CS17G Manual or CJ6 Electric Mechanism for Neutral Point Application | – |
| Core Technology | Neutral Point Isolation Application + Bracket Base Pillar Insulator Contact Wiring Board Composition + Pillar Insulator and Conductive Part Installed on Base + 50° Intersection Angle of Two Pillar Insulators + Base Fixed on 25° Tilted Bracket + Unique Installation Geometry + Optimal Electrical Clearance + Mechanical Stability + Bracket Equipped with Shaft Connected to Operating Mechanism + CS17G Manual Operating Mechanism + CJ6 Electric Mechanism + Remote Automatic Operation Capability + Voltage Options 40.5-126kV + Flexible Mechanism Configuration + Environmental Condition Specification Requirements | – |
| Rated Voltage Options | 40.5kV / 72.5kV / 126kV | kV |
| Rated Current | 630 | A |
| Installation Type | Outdoor | – |
| Application Type | Neutral Point Disconnecting | – |
| Neutral Point Isolation | Yes (Suitable for Neutral Point Isolation Applications) | – |
| Isolating Switch Composition | Bracket + Base + Pillar Insulator + Contact + Wiring Board | – |
| Pillar Insulator Intersection Angle | 50° | Degrees |
| Tilted Bracket Angle | 25° | Degrees |
| 50° Pillar Insulator Intersection | Yes (Intersection Angle of Two Pillar Insulators is 50°) | – |
| 25° Tilted Bracket | Yes (Base Fixed on Bracket Tilted 25°) | – |
| Unique Installation Geometry | Yes (50° Intersection and 25° Tilted Bracket Providing Unique Installation Geometry) | – |
| Optimal Electrical Clearance | Yes (Design Ensuring Optimal Electrical Clearance) | – |
| Mechanical Stability | Yes (Design Ensuring Mechanical Stability) | – |
| Pillar Insulator and Conductive Part on Base | Yes (Pillar Insulator and Conductive Part Installed on Base) | – |
| Base Fixed on Tilted Bracket | Yes (Base Fixed on Bracket Tilted 25°) | – |
| Bracket with Shaft Connection | Yes (Bracket Equipped with Shaft Connected to Operating Mechanism) | – |
| CS17G Manual Operating Mechanism | Yes (Can Be Equipped with CS17G Manual Operating Mechanism) | – |
| CJ6 Electric Mechanism | Yes (Can Be Equipped with Electric Mechanism Such as CJ6) | – |
| Remote Automatic Operation | Yes (CJ6 Electric Mechanism for Remote Automatic Operation) | – |
| Flexible Mechanism Configuration | Yes (CS17G Manual or CJ6 Electric Mechanism Options) | – |
| Isolating Switch Composition | Components |
|---|---|
| 1 | Bracket |
| 2 | Base |
| 3 | Pillar Insulator |
| 4 | Contact |
| 5 | Wiring Board |
| Installation Geometry Features | Parameter |
|---|---|
| Pillar Insulator Intersection Angle | 50° |
| Tilted Bracket Angle | 25° |
| Installation Type | Base Fixed on 25° Tilted Bracket |
| Pillar Insulator Mounting | Pillar Insulator and Conductive Part Installed on Base |
| Operating Mechanism Options | Type |
|---|---|
| Manual Operating Mechanism | CS17G Type |
| Electric Operating Mechanism | CJ6 Type |
| Ordering Instructions | Requirements |
|---|---|
| 1 | Outdoor Isolating Switch Models and Specifications |
| 2 | Environmental Conditions of Use (Ambient Temperature, Altitude, Environmental Pollution Level) |
| 3 | Operating Mechanism Model |
| 4 | The Name and Quantity of Spare Parts, Special Tools and Equipment (Need to Be Ordered Separately) |
