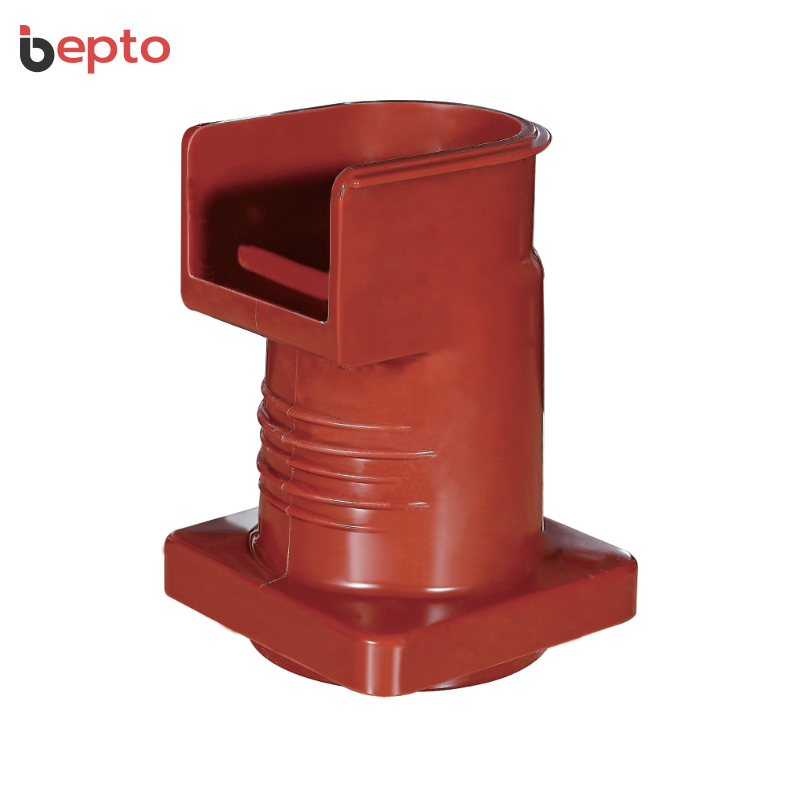

CHN3-10Q Epoxy Resin Cast Shielded Contact Box: 12kV indoor switchgear, 630A-1600A current, 42kV/75kV withstand, 105°C temperature, V1/V0 flame rating, KYN28/KYN61/VD4 compatible.
| Selection | Drawing No. | Mounting Distance |

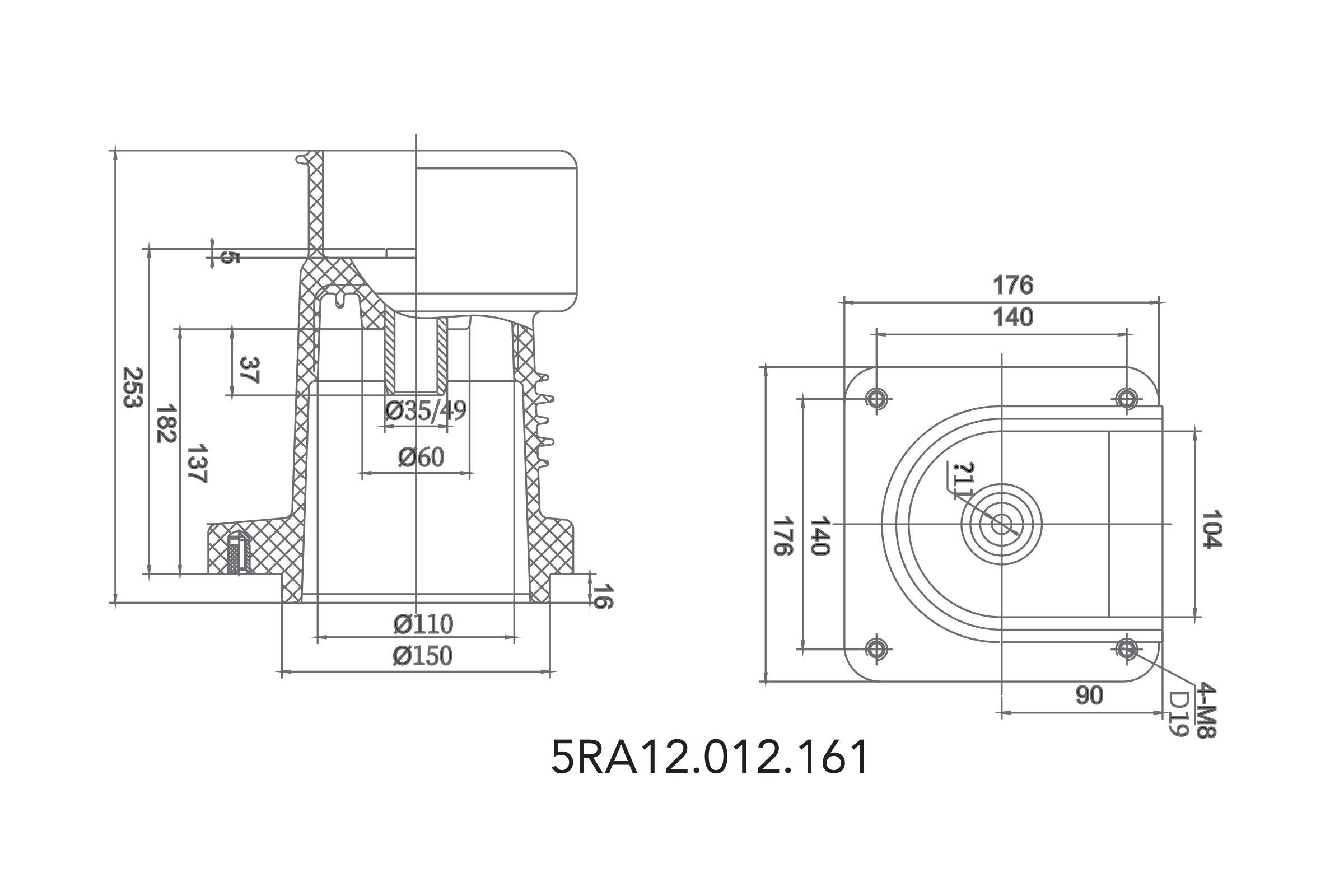

| CHN3-10Q/176A | 5RA12.012.161 | 210 |
| Selection | Drawing No. | Mounting Distance |

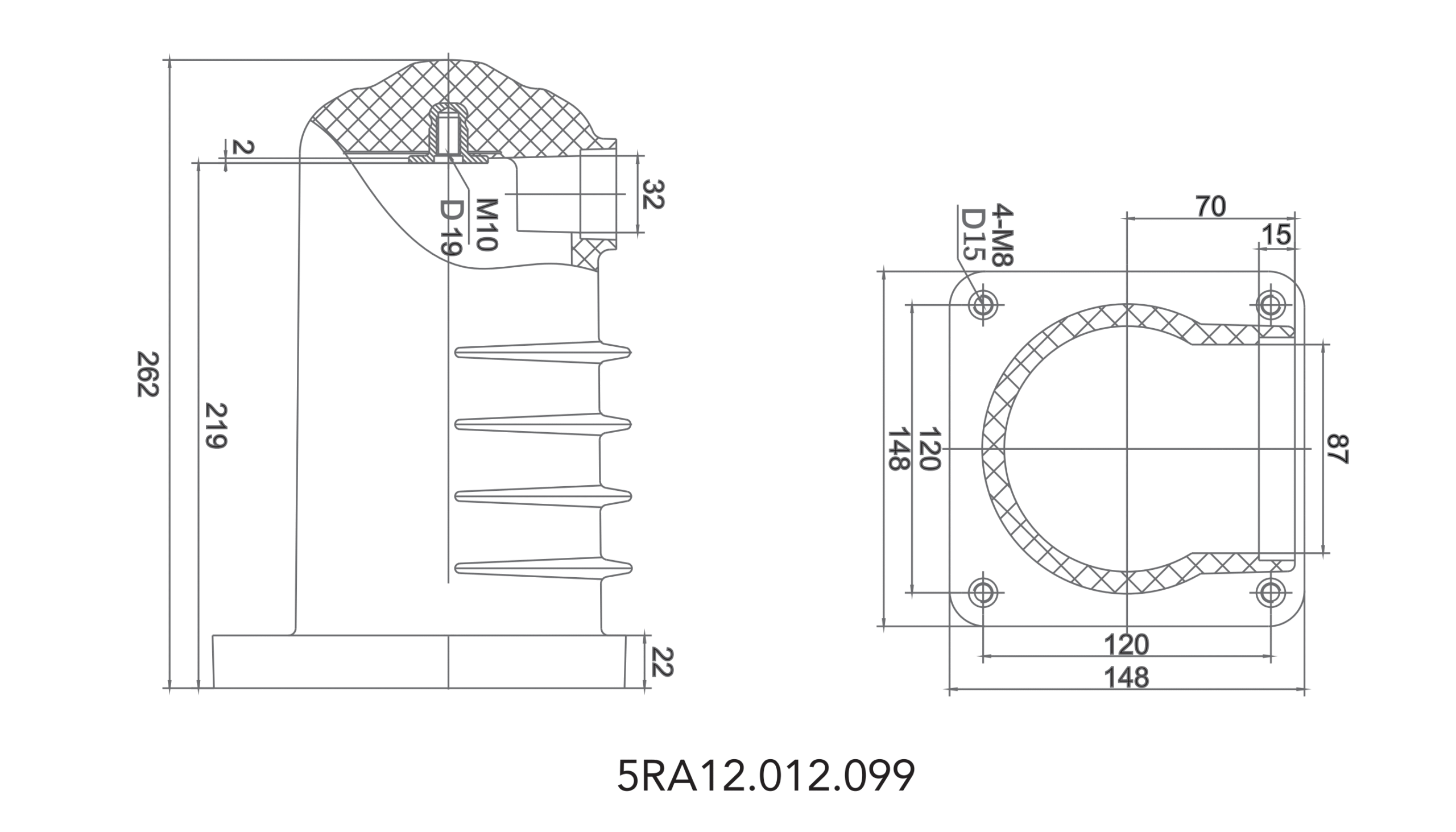

| CHN3-10Q/148 | 5RA12.012.099 | 210 |
| Item | CHN3-10Q/176A | CHN3-10Q/148 | Unit |
|---|---|---|---|
| Product Serial Number | CHN3-10Q/176A | CHN3-10Q/148 | – |
| Drawing Number | 5RA12.012.161 | 5RA12.012.099 | – |
| Product Type | Epoxy Resin Cast Shielded Contact Box | Epoxy Resin Cast Shielded Contact Box | – |
| Rated Voltage | 12 | 12 | kV |
| Rated Current | 630-1600 | 630-1600 | A |
| Power Frequency Withstand Voltage (PF) | 42 | 42 | kV/1min |
| Partial Discharge (PD) | 1.1UR≤3 | 1.1UR≤3 | pc |
| Lightning Impulse Withstand Voltage | 75 | 75 | kV |
| Proof Tracking Index (PTI) | 1A2.5 | 1A2.5 | – |
| Glass Transition Temperature (TG) | 105±5 | 105±5 | °C |
| Flame Rating | V1 (UL94) | V1 (UL94) | UL94 |
| Flame Rating (Special Needs) | V0 | V0 | UL94 |
| Creepage Distance | 20 | 20 | mm/kV |
| Color | 3016 RAL | 3016 RAL | RAL |
