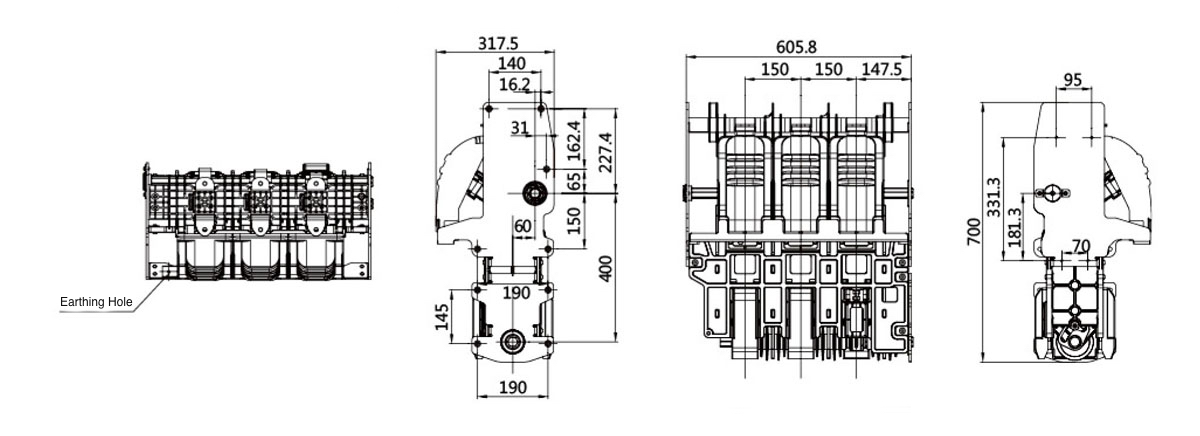

BESSV-12/630A Upper Isolating Circuit Breaker 12kV 630A – SF6 Free Switchgear 20kA 25kA M2 C2 IP67 Sealed
Advanced BESSV-12/630A Upper Isolating Circuit Breaker: Premium BESSV-12/630A model featuring upper-isolating design for eco-friendly SF6-free 12kV 630A switchgear applications (expandable to 24kV/40.5kV and 2500A), delivering exceptional 20kA/25kA short-circuit breaking capacity with 50kA/63kA peak withstand current and 3s rated duration, utilizing 0.02MPa dry air filling pressure for sustainable insulation, featuring M2 mechanical endurance and C2 capacitive current switching classification, with 85kV lightning impulse across isolating distance and 48kV power frequency withstand, designed with IP67 sealed cabinet protection and IP4X cabinet shell rating.
Automated Distribution Network Ready: BESSV-12/630A incorporates electrical operation capability with DC 220/110/48/24V closing and opening voltage for true distribution network automation, featuring O-0.3s-CO-180s-CO rated operating sequence and 75kV lightning impulse withstand (phase-to-phase/earth), designed for SF6-free eco-friendly switchgear applications, providing reliable upper-isolating circuit breaking solution for substations, industrial facilities, utilities, and automated distribution networks requiring environmentally sustainable operation with high breaking capacity and superior mechanical endurance.
| BESSV-12/630A Upper Isolating Circuit Breaker Specifications | Technical Parameters | Unit |
|---|---|---|
| Model Number | BESSV-12/630A | – |
| Brand | Bepto Insulation Systems | – |
| Product Type | Upper Isolating Circuit Breaker for Eco-Friendly SF6-Free Switchgear | – |
| Rated Voltage | 12 (24 / 40.5 available) | kV |
| Rated Current | 630 (up to 2500A available) | A |
| Rated Frequency | 50 | Hz |
| Rated Short-Circuit Breaking Current | 20 / 25 | kA |
| Rated Short-Circuit Making Current (Peak) | 50 / 63 | kA |
| Rated Short-Time Withstand Current | 20 / 25 | kA |
| Rated Peak Withstand Current | 50 / 63 | kA |
| Rated Short-Time Withstand Current Duration | 3 | s |
| Rated Short-Time Power-Frequency Withstand Voltage (Phase-to-Phase/Phase-to-Earth) | 42 | kV |
| Rated Lightning Impulse Withstand Voltage (Phase-to-Phase/Phase-to-Earth) Peak | 75 | kV |
| Rated Short-Time Power-Frequency Withstand Voltage (Across Isolating Distance) | 48 | kV |
| Rated Lightning Impulse Withstand Voltage (Across Isolating Distance) Peak | 85 | kV |
| Closing Operating Voltage | DC 220 / 110 / 48 / 24 | V |
| Opening Operating Voltage | DC 220 / 110 / 48 / 24 | V |
| Classification Class Based on Mechanical Endurance | M2 | – |
| Classification Class Based on Capability to Switch Capacitive Currents | C2 | – |
| Rated Dry Air Filling Pressure (Gauge Pressure at 20°C) | 0.02 | MPa |
| Ingress Protection (IP) of Cabinet Shell | IP4X | – |
| Ingress Protection (IP) of Sealed Cabinet | IP67 | – |
| Rated Operating Sequence | O-0.3s-CO-180s-CO | – |
| Operation Type | Electrical (Automated) | – |
| Insulation Technology | Dry Air Insulation (SF6-Free) | – |
| Application | Eco-Friendly SF6-Free Switchgear, Substations, Automated Networks | – |
