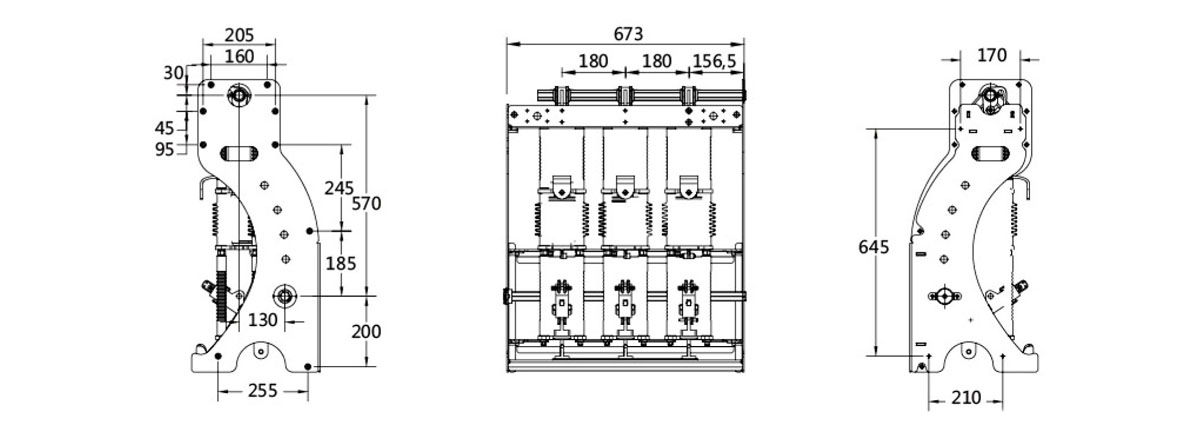

BE82XV-12/630/3 Air Insulated Circuit Breaker: SF6-free 12kV 630A Type I disconnector, 20kA/25kA withstand, 50kA/63kA peak, IP65/IP67 sealed cabinet, automated operation for air insulated switchgear.
Advanced BE82XV-12/630/3 Air Insulated Circuit Breaker: Premium BE82XV-12/630/3 Type I model featuring integrated disconnector function for SF6-free 12kV 630A air insulated switchgear applications, delivering exceptional 20kA/25kA rated short-time withstand current with 50kA/63kA peak withstand capacity and 3s rated duration, utilizing air insulation technology for eco-friendly operation, featuring 85kV lightning impulse across isolating distance and 48kV power frequency withstand, designed with IP65/IP67 sealed cabinet protection and IP4X cabinet shell rating for superior environmental resistance.
Automated Distribution Network Ready: BE82XV-12/630/3 incorporates electrical operation capability for true distribution network automation with O-0.3s-CO-180s-CO rated operating sequence and 75kV lightning impulse withstand (phase-to-phase/earth), designed for SF6-free air insulated switchgear applications, providing integrated circuit breaking and isolation solution for substations, industrial facilities, utilities, and automated distribution networks requiring reliable switching with high withstand capacity and comprehensive environmental protection.
| BE82XV-12/630/3 Air Insulated Circuit Breaker Specifications | Technical Parameters | Unit |
|---|---|---|
| Model Number | BE82XV-12/630/3 | – |
| Brand | Bepto Insulation Systems | – |
| Product Type | Air Insulated Circuit Breaker-Disconnector Type I (SF6-Free) | – |
| Rated Voltage | 12 | kV |
| Rated Current | 630 | A |
| Rated Frequency | 50 | Hz |
| Rated Short-Time Withstand Current | 20 / 25 | kA |
| Rated Peak Withstand Current | 50 / 63 | kA |
| Rated Short-Time Withstand Current Duration | 3 | s |
| Rated Short-Time Power-Frequency Withstand Voltage (Phase-to-Phase/Phase-to-Earth) | 42 | kV |
| Rated Lightning Impulse Withstand Voltage (Phase-to-Phase/Phase-to-Earth) Peak | 75 | kV |
| Rated Short-Time Power-Frequency Withstand Voltage (Across Isolating Distance) | 48 | kV |
| Rated Lightning Impulse Withstand Voltage (Across Isolating Distance) Peak | 85 | kV |
| Ingress Protection (IP) of Cabinet Shell | IP4X | – |
| Ingress Protection (IP) of Sealed Cabinet | IP65, IP67 | – |
| Rated Operating Sequence | O-0.3s-CO-180s-CO | – |
| Operation Type | Electrical (Automated) | – |
| Insulation Technology | Air Insulation (SF6-Free) | – |
| Application | SF6-Free Air Insulated Switchgear, Substations, Automated Networks | – |
