CNN40.5-320/340 40.5kV Sensor Insulator Series: Ultra high voltage air insulation for industrial switchgear, 630-3150A current range, 185kV lightning impulse withstand, 320-340mm heights.
| Name | Specifications | Drawing No. |

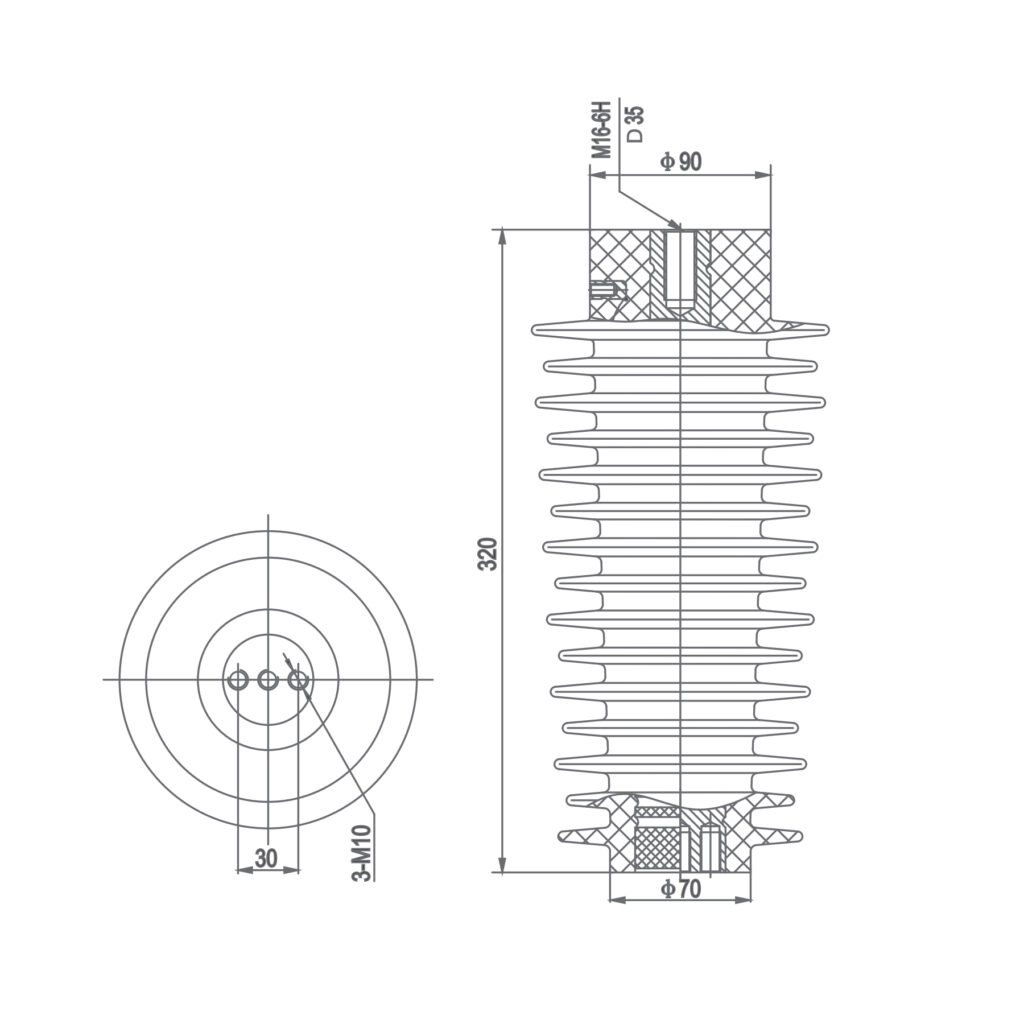

| sensor insulator | CNN40.5-320 | 5RA35.016.062 |
| insulator | ZNN40.5-320 | 5RA35.016.074 |
| Name | Specifications | Drawing No. |
| sensor insulator | CNN40.5-340 | 5RA35.016.139 |
| insulator | ZNN40.5-340 | 5RA35.016.138 |
| Item | Value | Unit |
| Rated Voltage | 40.5 | kV |
| Rated Current | 630-3150 | A |
| PF | 95 | kV/1min |
| PD | 1.1UR≤3 | pc |
| Lightning Impulse Withstand Voltage | 185 | kV |
| PTI | 1A2.5 | |
| TG | 105±5 | °C |
| Flame Rating | V1 | UL94 |
| V0 Special needs | ||
| Capacitance | 45/100 | mm |
| Creepage than from | 20 | mm/kV |
| Color | 3016 | RAL |
