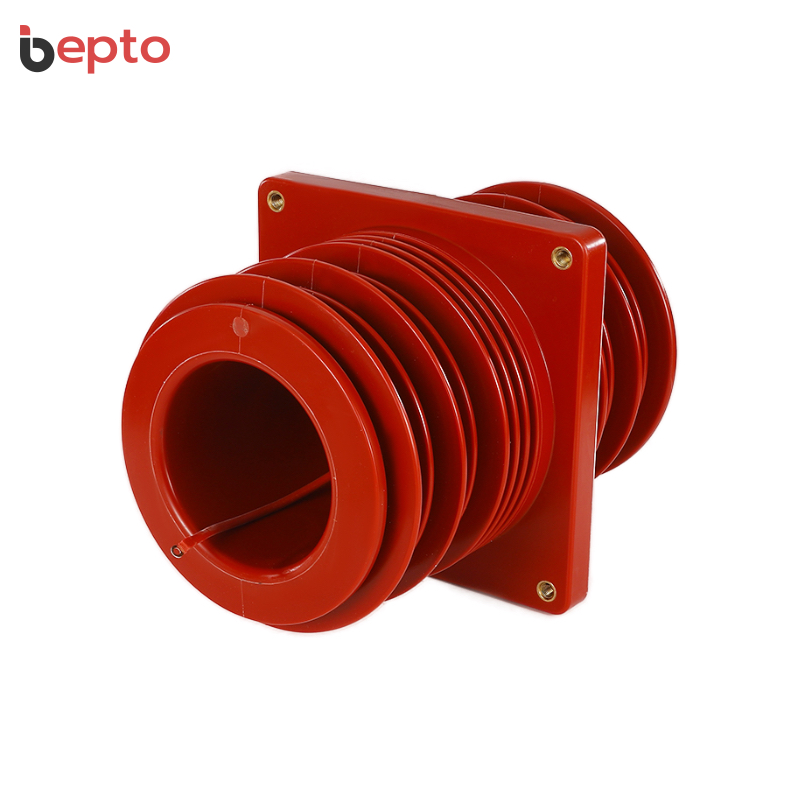

TG3-35KV/260×260×395 35KV Wall Bushing with Shielding: 260×260×395mm heavy-duty design, 3150-5000A high-voltage capacity, 185kV lightning impulse, extreme conditions ready, IP68 protection.
| Number of Busbars Passable | Single Busbar | Single Busbar/Double Busbar | Single Busbar/Double Busbar |
| A | 20 | 20 | 20 |
| B | 70 | 90 | 110 |
| Type | TG3-35KV/260×260×395（With Shielding） |
| Rated Voltage | 35kV |
| Rated Current | 3150A ~ 5000A |
| Power Frequency Withstand Voltage | 85kV/1min |
| Lightning Impulse Withstand Voltage | 185kV |
| Material | Epoxy Resin + Copper Shielding Layer + Silicone Rubber Composite Insulation |
| Protection Rating | IP68 |
| Installation Dimensions | 260×260×395 mm (Outer Diameter × Length × Overall Height) |
| Applicable Temperature Range | -40℃ ~ +90℃ |
