35KV Wall Bushing Shielding 220×220×450 – TG3-35KV Optimized 2500-4000A IP68 Resilient

Description：

TG3-35KV/220×220×450 35KV Wall Bushing with Shielding: 220×220×450mm optimized design, 2500-4000A reliable capacity, electromagnetic shielding, resilient harsh environments, IP68 protection.

Applications：

  • High-Voltage Power Distribution Systems: Advanced power distribution networks, utility substations, industrial power facilities requiring electromagnetic shielding enhancing system reliability and reducing interference risks in high-voltage environments with 2500-4000A capacity and 35kV rating ensuring superior electromagnetic protection in critical power distribution applications
  • Harsh Environment Power Infrastructure: Outdoor power installations, extreme climate facilities, challenging operational environments demanding resilient harsh environment performance with IP68 protection and wide temperature tolerance from -40℃ to +90℃ ensuring reliable operation in the most demanding environmental conditions with composite insulation excellence
  • Optimized Wall Integration Projects: Power system wall penetrations, substation installations, switchgear integration requiring optimized wall integration design for stable wall penetrations in power infrastructure with 220×220×450mm dimensions specifically engineered for secure and reliable electrical connections in power system applications
  • Critical Power Equipment Systems: Industrial energy systems, high-dependability applications, mission-critical power facilities needing secure stable connections ensuring long-lasting insulation and operational safety for critical equipment with composite insulation excellence providing strong electrical protection through epoxy, copper, and silicone materials for maximum reliability
Quote Now

Specifications

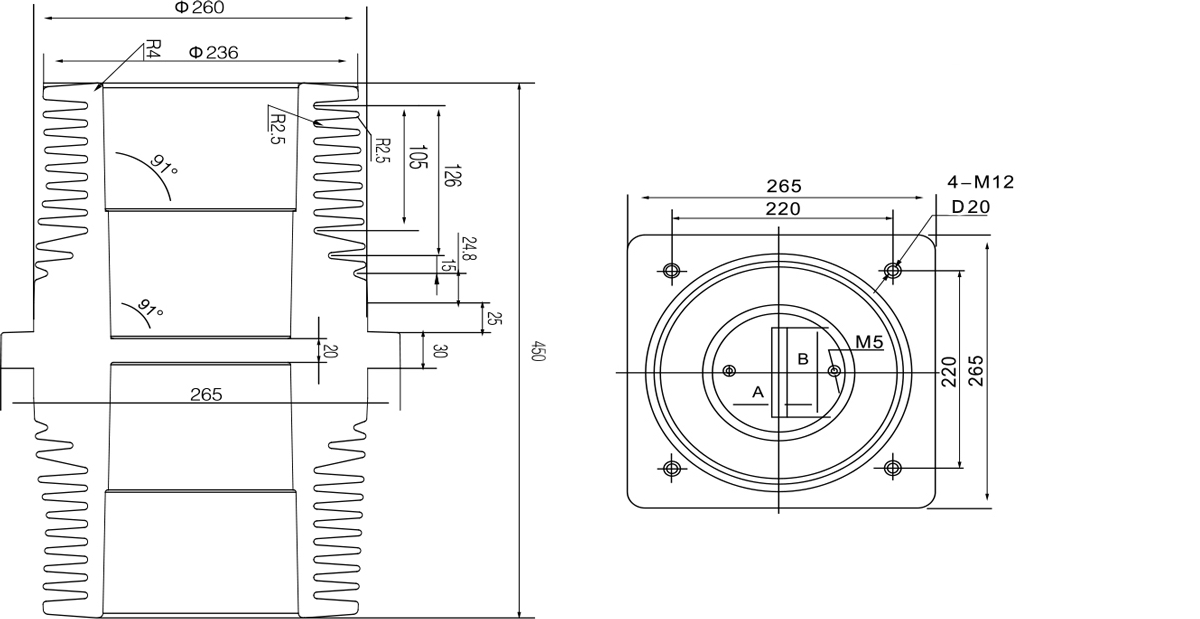

35KV Wall Bushing Shielding 220×220×450 - TG3-35KV Optimized 2500-4000A IP68 Resilient

Number of Busbars Passable Single Busbar Single Busbar/Double Busbar Single Busbar/Double Busbar
A 20 20 20
B 70 90 110

Features

Type TG3-35KV/220×220×450（With Shielding）
Rated Voltage 35kV
Rated Current 2500A ~ 4000A
Power Frequency Withstand Voltage 85kV/1min
Lightning Impulse Withstand Voltage 185kV
Material Epoxy Resin + Copper Shielding Layer + Silicone Rubber Composite Insulation
Protection Rating IP68
Installation Dimensions 220×220×450 mm (Outer Diameter × Length × Overall Height)
Applicable Temperature Range -40℃ ~ +90℃
