24KV Wall Bushing 175×255×310 – TG3-24KV Heavy-Duty 2500-5000A IP68 Extreme

Description:

TG3-24KV/175×255×310 24KV Wall Bushing: 175×255×310mm heavy-duty design, 2500-5000A high current capability, 170kV lightning impulse, extreme environment endurance, IP68 protection.

Applications:

  • Large-Scale Power Infrastructure: Major power generation facilities, high-voltage transmission networks, utility-scale renewable energy installations requiring high voltage & current capability supporting stable operation in demanding medium-voltage applications with 2500-5000A capacity and 24kV rating for maximum power handling in critical infrastructure projects
  • Heavy Industrial Power Systems: Steel manufacturing complexes, aluminum production facilities, large-scale chemical processing plants demanding reinforced insulation structure providing superior electrical insulation and electromagnetic shielding with 70kV power frequency and 170kV lightning impulse withstand voltage for enhanced electrical protection in high-stress industrial environments
  • Extreme Environment Installations: Offshore oil platforms, arctic mining operations, desert solar farms needing extreme environment endurance performing reliably in severe weather and high-stress industrial environments across -40℃ to +90℃ with IP68 protection ensuring continuous operation in the harshest operational conditions
  • Heavy-Duty System Integration: Power grid expansion projects, industrial facility modernization, large-scale infrastructure development requiring heavy-duty design compatibility suiting large-scale infrastructure and high-load power systems with 175×255×310mm dimensions supporting wide industry application across energy, petrochemicals, and heavy industry sectors

Specifications

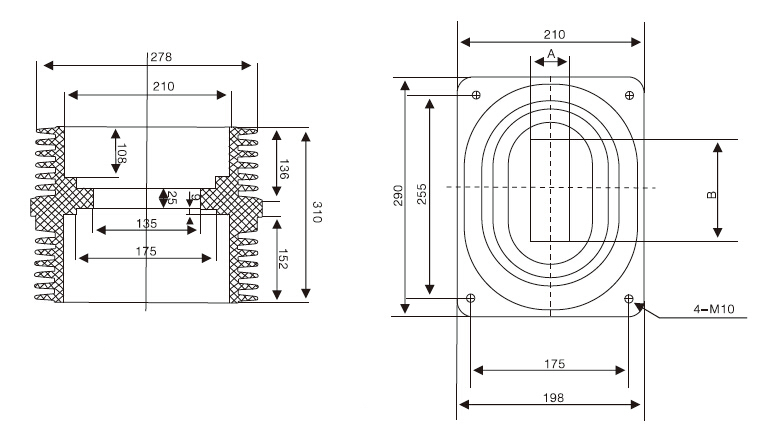

24KV Wall Bushing 175×255×310 - TG3-24KV Heavy-Duty 2500-5000A IP68 Extreme

Number of Busbars Passable Single Busbar Single Busbar Single Busbar
A 10 12 12
B 62 82 102

Features

Type TG3-24KV/175×255×310
Rated Voltage 24kV
Rated Current 2500A ~ 5000A
Power Frequency Withstand Voltage 70kV/1min
Lightning Impulse Withstand Voltage 170kV
Material Epoxy Resin + Copper Shielding Layer + Silicone Rubber Composite Insulation
Applicable Temperature Range -40℃ ~ +90℃
Protection Rating IP68
Installation Dimensions 175×255×310 mm (Outer Diameter × Length × Overall Height)
