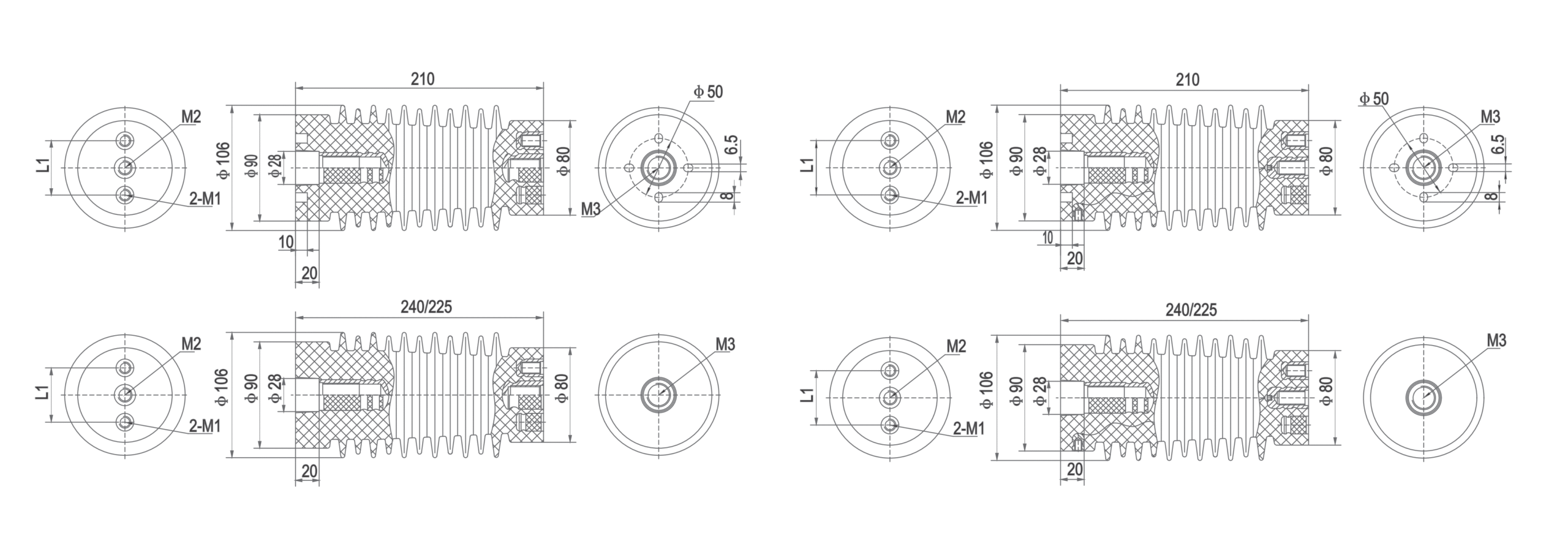

CNN24-210/240 24kV Sensor Insulator Series: Professional air insulation for KYN28-24 switchgear, 630-2500A rated current, M8/M12/M16 mounting, 210-240mm heights available.
| Name | Specifications | Drawing No. | Install distance |
| sensor insulator | CNN24-210 | 5RA24.016.068 | Upper 2-M8 Middle M12L36 Lower M16 |
| insulator | ZNN24-210 | 5RA24.016.070 | Upper 2-M8 Middle M12L36 Lower M16 |
| Name | Specifications | Drawing No. | Install distance |
| sensor insulator | CNN24-240 | 5RA24.016.065 | Upper 2-M8 Middle M12L36 Lower M16 |
| insulator | ZNN24-240 | 5RA24.016.071 | Upper 2-M8 Middle M12L36 Lower M16 |
| Item | Value | Unit |
| Rated Voltage | 24 | kV |
| Rated Current | 630-2500 | A |
| PF | 65 | kV/1min |
| PD | 1.1UR≤3 | pc |
| Lightning Impulse Withstand Voltage | 125 | kV |
| PTI | 1A2.5 | |
| TG | 105±5 | °C |
| Flame Rating | V1 | UL94 |
| V0 Special needs | ||
| Capacitance | 80/120 | mm |
| Creepage than from | 20 | mm/kV |
| Color | 3009 | RAL |
