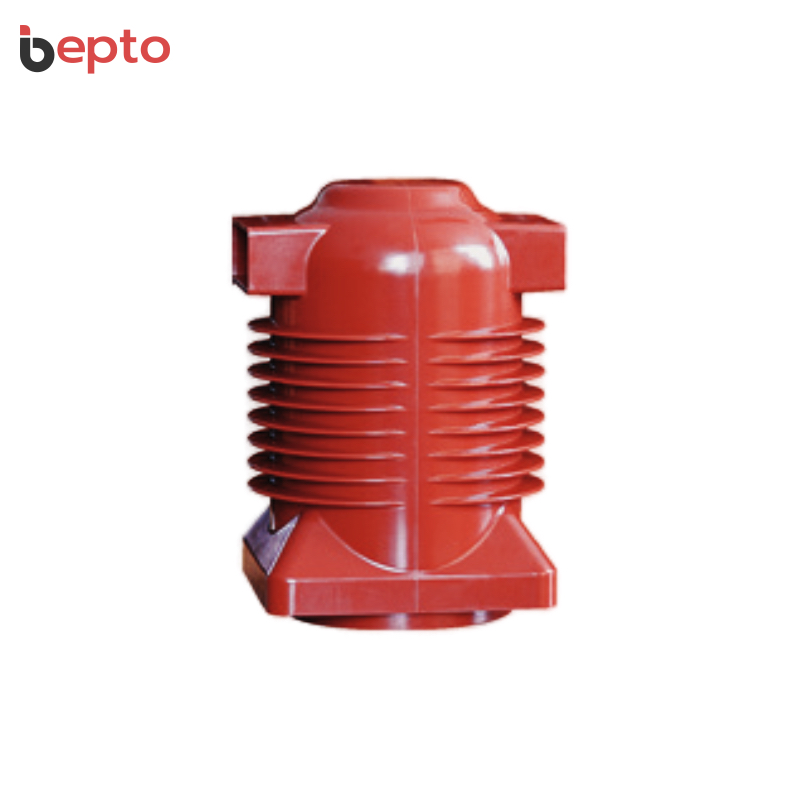

24KV Contact Box Reverse-Mounted Three-Way – CH4/CHJ 1250-1600A 25kA Fully-Insulated

Description：

CH4/CHJ 24kV Contact Box Reverse-Mounted Three-Way: 1250-1600A fully-insulated construction, 25kA/4s withstand current, flexible mounting options, wide temperature -40°C to +70°C adaptability.

Applications：

  • Compact Switchgear Applications: Space-constrained installations, compact cabinet layouts, multi-angle configurations requiring flexible mounting options with reverse-mounted and multi-angle hole patterns suiting diverse cabinet layouts with 1250-1600A capacity and 24kV rating ensuring superior performance in compact switchgear systems
  • Complex Busbar Systems: Multi-path distribution networks, complex electrical configurations, industrial busbar systems demanding three-way connectivity with CHJ14 model offering tri-path connections for complex busbar systems for 25kA/4s withstand current ensuring maximum reliability in demanding complex busbar applications
  • Harsh Environment Operations: Extreme climate installations, high-altitude facilities, challenging environmental conditions needing wide temperature adaptability with reliable performance from -40°C to +70°C in extreme climates and high altitude suitability certified for use up to 4000m elevation without derating
  • Safety-Critical Systems: Operator safety applications, maintenance-friendly installations, safety-critical electrical systems requiring fully insulated construction eliminating exposed live parts for enhanced operator safety with high mechanical stability and epoxy resin molding providing robust resistance to vibration and impact
Quote Now

Specifications

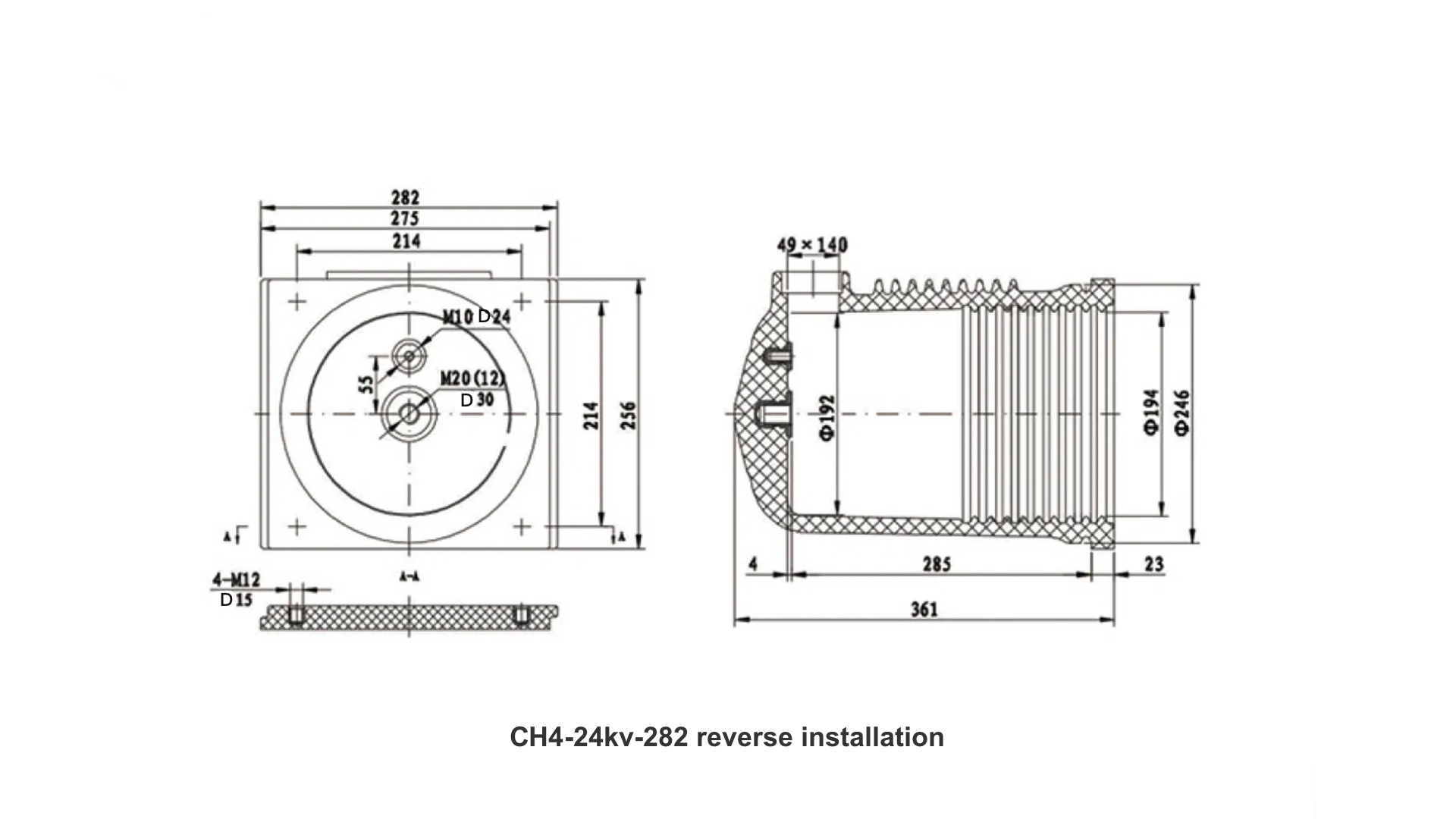

24KV Contact Box Reverse-Mounted Three-Way - CH4 282 1250-1600A 25kA Fully-Insulated

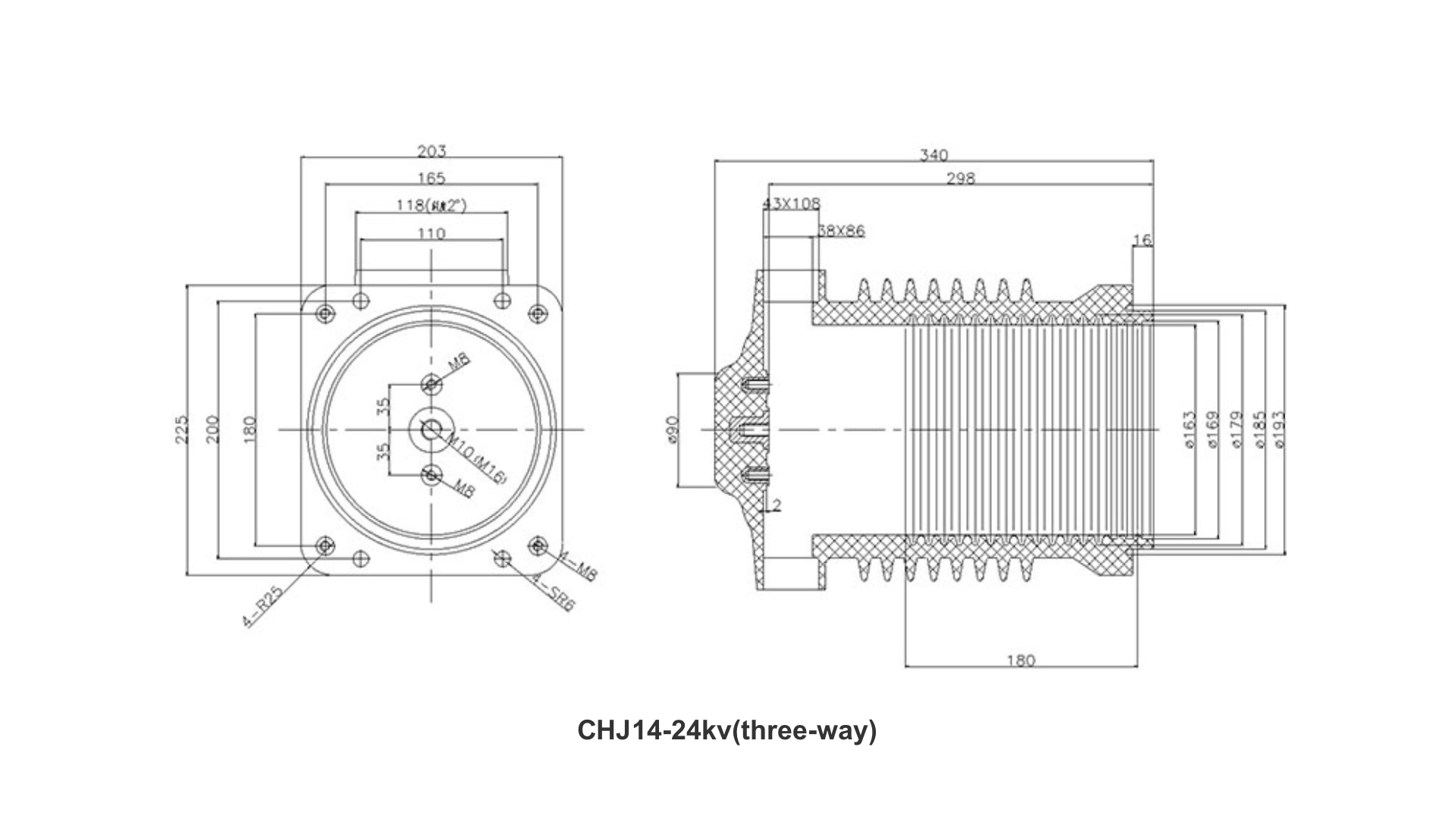

24KV Contact Box Reverse-Mounted Three-Way - CHJ14 1250-1600A 25kA Fully-Insulated



Features

Model Rated voltage Rated current Material Power frequency withstand voltage Lightning impulse withstand voltage Operating temperature Short-time withstand current Ocean technology height
CH4-24kv-282
reverse installation
(ΦM20 side M10)		 24kv 1250A Epoxy resin 65kv/1min 125kv -40 to +70 25kA/4s ≤4000m
CH4-24kv-282
reverse installation
(ΦM12/M20 side
4-M10 turn
45° hole distance 60Φ)		 24kv 1250A Epoxy resin 65kv/1min 125kv -40 to +70 25kA/4s ≤4000m
CHJ14-24kv
(three-way)		 24kv 1250A-1600A Epoxy resin 65kv/1min 125kv -40 to +70 25kA/4s ≤4000m
