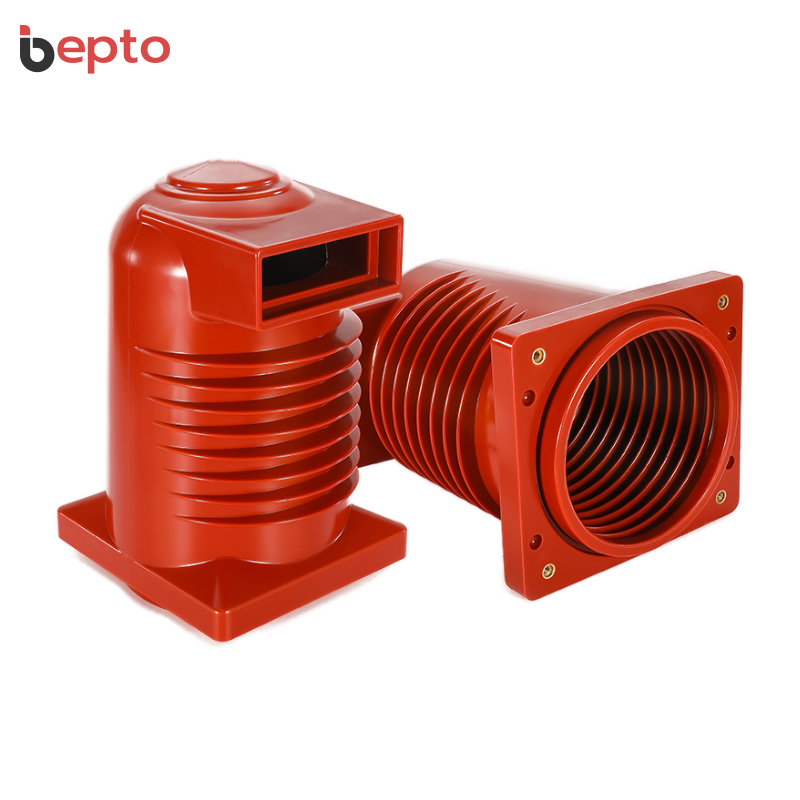

24KV Contact Box APG Molding 630-1600A – CH3-24KV/225 40kA IP67 High-Voltage

Description：

CH3-24KV/225 630-1600A 24KV Contact Box APG Molding: 630-1600A static mixed APG injection, 40kA/4s withstand current, IP67 protection, maintenance-free design for high-voltage switchgear.

Applications：

  • High-Voltage Switchgear Applications: GIS systems, compact substations, high-voltage installations requiring APG molding technology with static mixed APG injection producing void-free epoxy structures for unrivaled insulation reliability with 630-1600A capacity and 24kV rating ensuring superior performance in high-voltage power distribution systems
  • Industrial Power Infrastructure: Medium and high-voltage switchgear, industrial substations, power distribution facilities demanding superior mechanical arc resistance with epoxy resin delivering high strength and strong arc endurance under electrical stress for 40kA/4s withstand current ensuring maximum reliability in demanding industrial applications
  • Renewable Energy Systems: Wind/solar collector cabinets, renewable energy installations, green power infrastructure needing stable dielectric performance maintaining consistent dielectric properties through thermal cycling and reducing partial discharge risks with IP67 protection ensuring reliable operation in renewable energy environments
  • Transportation Power Networks: Rail transit applications, urban transportation systems, electric infrastructure requiring maintenance-free design with one-piece resin construction eliminating joints and minimizing inspection and upkeep for customizable current ratings from 630-1600A matching diverse system needs in transportation applications
Quote Now

Specifications

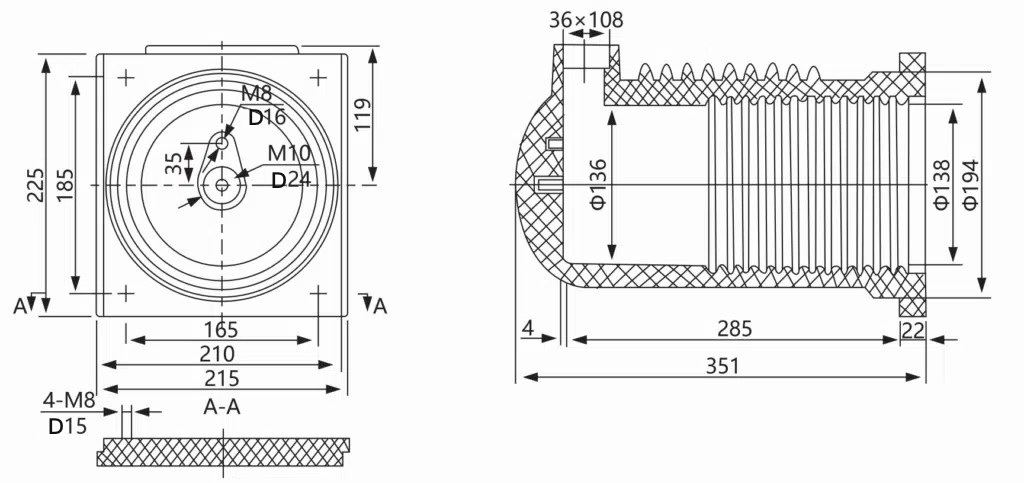

24KV Contact Box APG Molding 630-1600A - CH3-24KV225 40kA IP67 High-Voltage

Features

Type CH3-24KV/225 630～1600A
Rated Current 630～1600A
Rated Voltage 24kV
Rated Short-time Withstand Current 40kA/4s
Material Epoxy Resin
Protection Level IP67
