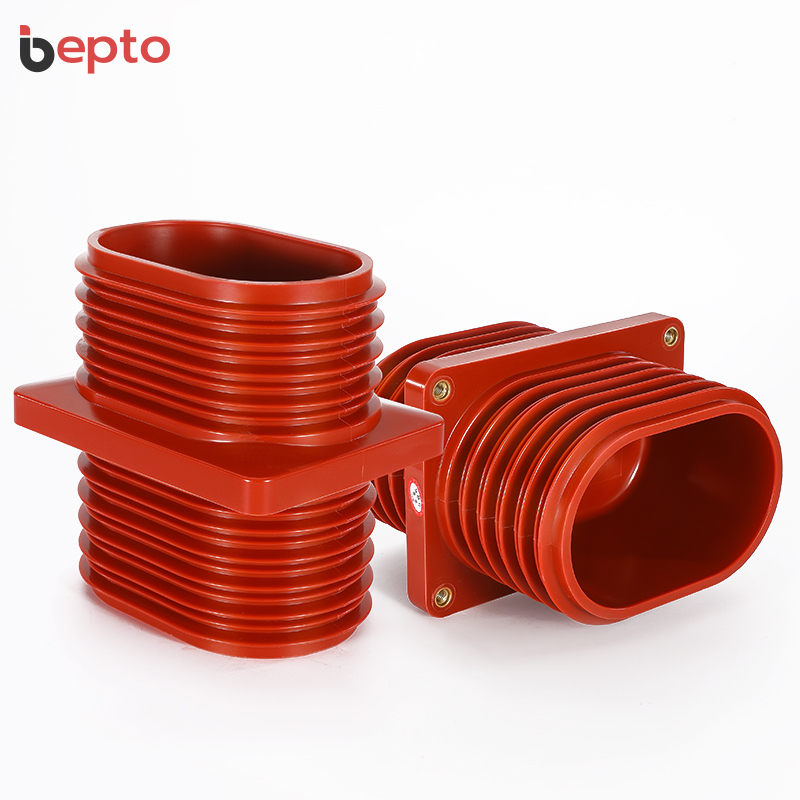

TG3-12KV/140×200 12KV Wall Bushing: 140×200mm standardized mounting, 2500-3150A high-current capacity, composite shielding synergy, optimized thermal management, IP68 immersion protection.

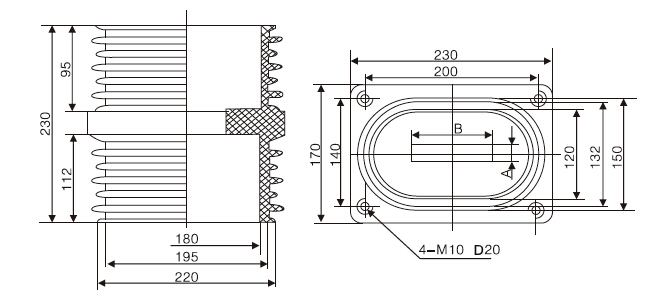

| Number of Busbars Passable | Single Busbar | Single Busbar/Double Busbar | Single Busbar/Double Busbar | Single Busbar/Double Busbar | Single Busbar/Double Busbar | Single Busbar/Double Busbar |
| A | 18 | 18 | 18 | 18 | 50 | 56 |
| B | 88 | 108 | 128 | 132 | 130 | 136 |
| Type | TG3-12KV/140×200 |
| Rated Voltage | 12kV |
| Rated Current | 2500A ~ 3150A |
| Power Frequency Withstand Voltage | 50kV/1min |
| Lightning Impulse Withstand Voltage | 110kV |
| Material | Epoxy Resin + Copper Shielding Layer + Silicone Rubber Composite Insulation |
| Applicable Temperature Range | -40℃ ~ +90℃ |
| Protection Rating | IP68 |
| Installation Dimensions | 140×200 mm (Outer Diameter × Length) |
Bepto is a leading Chinese company in electrical insulation, focused on developing advanced solutions for future power systems. We support transmission and distribution safety and growth, with long-term partners including State Grid, ABB, Schneider, Siemens, and GE. Our services reach clients in over 22 countries.
