TG3-12KV/130×210 12KV Wall Bushing: 130×210mm standardized size, 2000-3150A high current support, high-voltage durability 108kV, extreme environment adaptability, IP68 protection.
| Number of Busbars Passable | Single Busbar | Single Busbar | Single Busbar | Single Busbar | Single Busbar | Double Busbar |
| L | 50 | 70 | 110 | 110 | 137 | 128 |
| W | 5 | 18 | 18 | 50 | 70 | 18 |
| Type | TG3-12KV/130×210 |
| Rated Voltage | 12kV |
| Rated Current | 2000A ~ 3150A |
| Power Frequency Withstand Voltage | 48kV/1min |
| Lightning Impulse Withstand Voltage | 108kV |
| Material | Epoxy Resin + Copper Shielding Layer + Silicone Rubber Composite Insulation |
| Applicable Temperature Range | -40℃ ~ +85℃ |
| Protection Rating | IP68 |

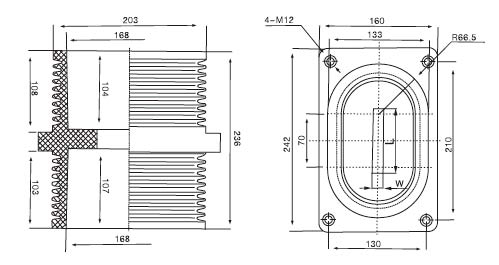

| Installation Dimensions | 130×210 mm (Outer Diameter × Length) |
Bepto is a leading Chinese company in electrical insulation, focused on developing advanced solutions for future power systems. We support transmission and distribution safety and growth, with long-term partners including State Grid, ABB, Schneider, Siemens, and GE. Our services reach clients in over 22 countries.
