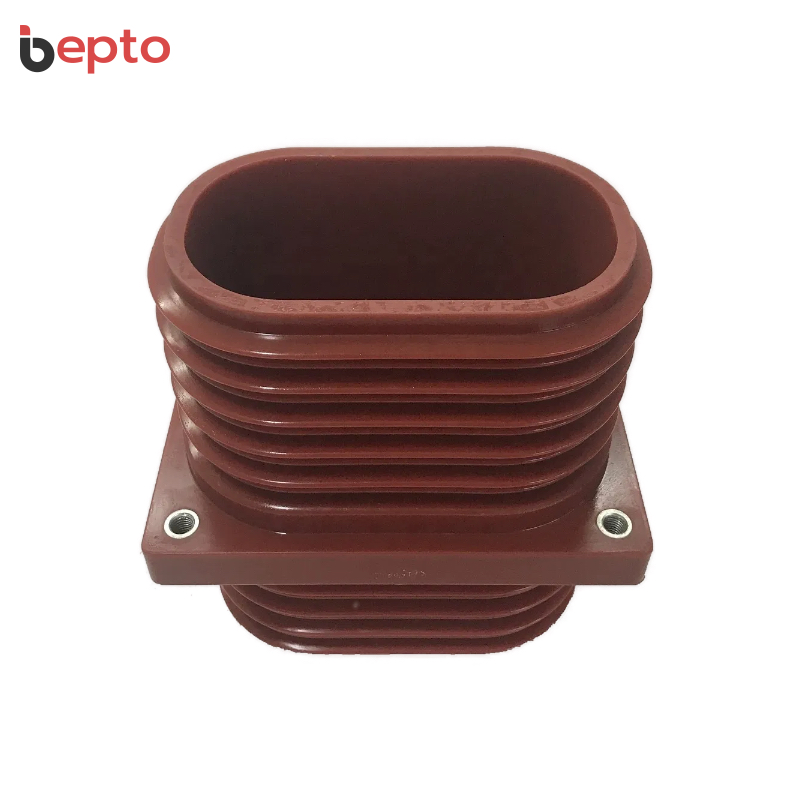

TG3-12KV/110×180×230 12KV Wall Bushing: 110×180×230mm modular compact, 2500-3150A ultra-high current, composite shielding synergy, void-free epoxy matrix, IP68 immersion grade.

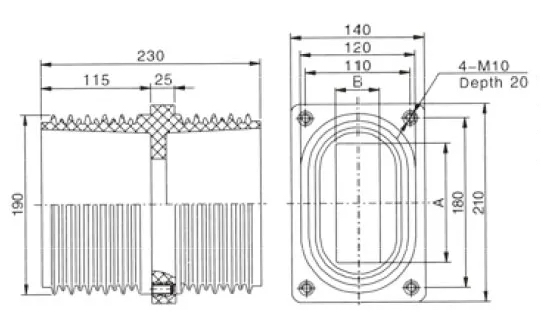

| Size of bus-bar hole（AxB） | 57×11 | 63×11 | 66×14 | 68×18 | 80×40 | 85×15 | 88×18 | 105×13 | 108×18 |
| 110×40 | 127×18 | 128×18 | 132×18 | 134×18 | 136×43 | 108×18(dual) | 128×18(dual) | 132×18(dual) |
| Type | TG3-12KV/110×180×230 |
| Rated Voltage | 12kV |
| Rated Current | 2500A ~ 3150A |
| Power Frequency Withstand Voltage | 45kV/1min |
| Lightning Impulse Withstand Voltage | 105kV |
| Material | Epoxy Resin + Copper Shielding Layer + Silicone Rubber Composite Insulation |
| Applicable Temperature Range | -40℃ ~ +90℃ |
| Protection Rating | IP68 |
| Installation Dimensions | 110×180×230 mm (Outer Diameter × Length × Overall Height) |
Bepto is a leading Chinese company in electrical insulation, focused on developing advanced solutions for future power systems. We support transmission and distribution safety and growth, with long-term partners including State Grid, ABB, Schneider, Siemens, and GE. Our services reach clients in over 22 countries.
