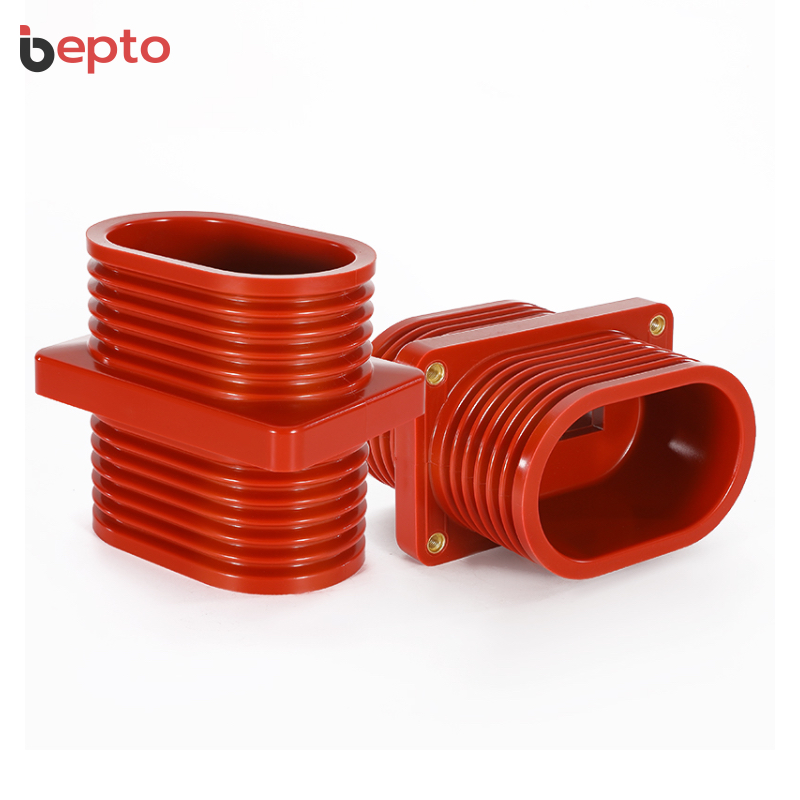

TG3-12KV/110×180 12KV Wall Bushing: 110×180mm compact modular, 1600-2000A high-current, hydrophobic silicone shedding, dry oil-free design, copper core shielding.

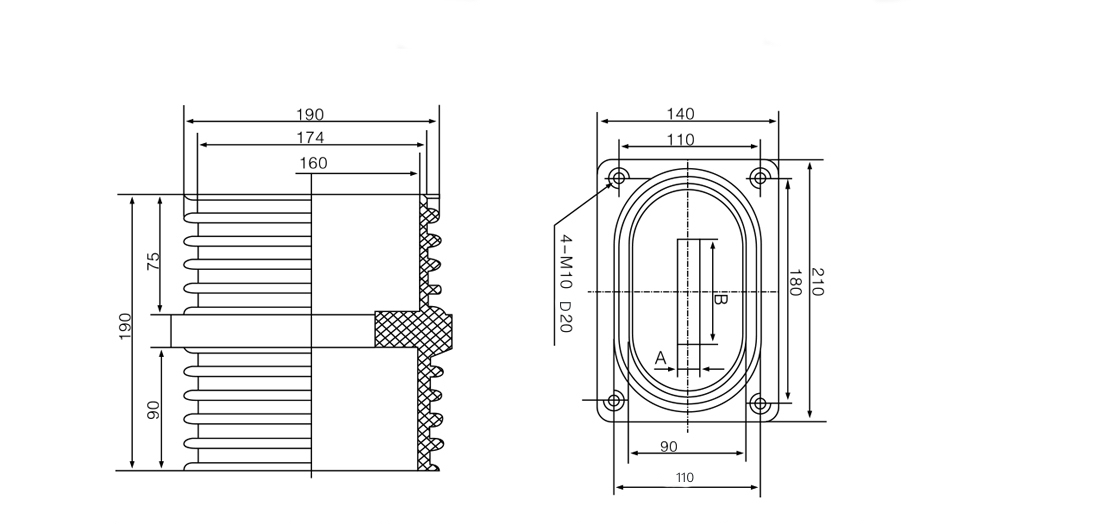

| Number of Busbars Passable | Single Busbar | Single Busbar | Single Busbar | Single Busbar/Double Busbar | Single Busbar/Double Busbar | Single Busbar/Double Busbar |
| A | 6 | 18 | 8 | 18 | 18 | 18 |
| B | 60 | 68 | 80 | 88 | 108 | 128 |
| Type | TG3-12KV/110×180 |
| Rated Voltage | 12 kV |
| Rated Current | 1600A ~ 2000A |
| Power Frequency Withstand | 42 kV/1min |
| Lightning Impulse Withstand | 95 kV |
| Material | Epoxy Resin + Silicone Rubber Composite Insulation (with Copper Core) |
| Operating Temperature | -40℃ ~ +85℃ |
| Protection Class | IP68 |
| Installation Dimensions | 110×180 mm (Outer Diameter × Length) |
