LZZBW-35B(GY) Outdoor Current Transformer 35kV Medium Voltage CT – 20-2000A Triple Winding 0.2S/0.5/5P20 Class 150×In Thermal 375×In Dynamic Epoxy Resin Casting 40.5/95/185kV
LZZBW-35B(GY) Outdoor Current Transformer 35kV Medium Voltage CT: 20-2000A primary current, 0.2S/0.5/5P20 accuracy class, triple winding configuration, 150×In thermal capacity for 20-100A, 375×In dynamic current, 40.5/95/185kV insulation level, 10-40VA burden, epoxy resin casting, 5A/1A secondary, 50-60Hz, GB1208 IEC60044-1.
LZZB(J)71-35W2 GY Support Type Current Transformer 35kV Outdoor Full-Closed CT – 30-2000A Triple Winding 0.2S/0.2/0.5/10P10 Class 150×In Thermal 375×In Dynamic Resin Casting 40.5/95/185kV
LZZB(J)71-35W2 GY Support Type Current Transformer 35kV Outdoor Full-Closed CT: 30-2000A primary current, 0.2S/0.2/0.5/10P10 accuracy class, triple winding configuration, 150×In thermal capacity for 30-100A, 375×In dynamic current, 40.5/95/185kV insulation, 15-50VA burden, resin casting, 5A/1A secondary, 50-60Hz, GB1208 IEC60044-1.
LZW-35 Outdoor Current Transformer 35kV Medium Voltage CT – 10-2000A Dual Winding 0.2S/0.5/5P20 Class 200×In Thermal 500×In Dynamic Epoxy Resin Casting 40.5/95/185kV
LZW-35 Outdoor Current Transformer 35kV Medium Voltage CT: 10-2000A primary current, 0.2S/0.5/5P20 accuracy class, dual winding configuration, 200×In thermal capacity for 10-100A, 500×In dynamic current, 40.5/95/185kV insulation level, 15-30VA burden, epoxy resin casting, 5A/1A secondary, 50-60Hz, GB1208 IEC60044-1.
LJW-10/35 LJWD-10/35 Current Transformer Indoor Outdoor Dual-Use Oil-Immersed CT – 10kV/35kV 5-600A 0.2/0.5/1/3D Class Steel Tank 75× Thermal 187.5× Dynamic 40.5/95/185kV GB1208 IEC60044-1
LJW-10/35 LJWD-10/35 Current Transformer Indoor Outdoor Dual-Use Oil-Immersed CT: 10kV/35kV, 5-600A primary current, 0.2/0.5/1/3D accuracy class, steel tank oil-immersed, 75× thermal stability, 187.5× dynamic stability, 40.5/95/185kV insulation, 10-50VA burden, 5A secondary, 50Hz, GB1208 IEC60044-1.

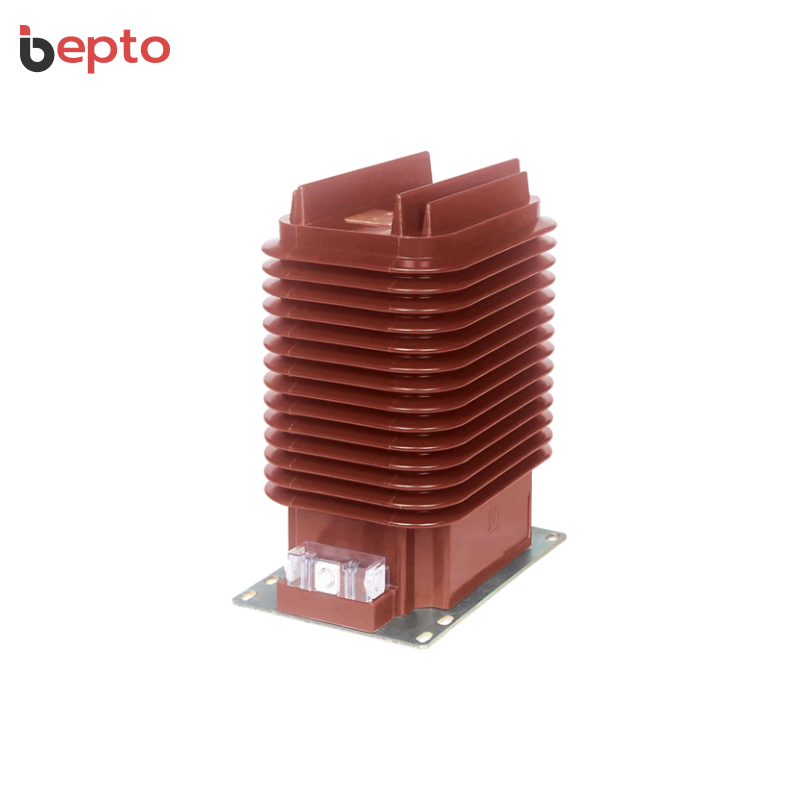

LZZBJ9-35Q Current Transformer 35kV Indoor Medium Voltage CT – 20-2500A 0.2/0.5/10P/5P Class 200×In Thermal 500×In Dynamic Quad Winding 40.5/95/185kV Epoxy Resin GB1208 IEC60044-1
LZZBJ9-35Q Current Transformer 35kV Indoor Medium Voltage CT: 20-2500A primary current, 0.2/0.5/10P10/5P15/5P20 accuracy class, 200×In thermal capacity for 20-100A, 500×In dynamic current, 40.5/95/185kV insulation level, quad winding, 10-40VA burden, 5A/1A secondary, 50/60Hz, GB1208 IEC60044-1, metering & protection.

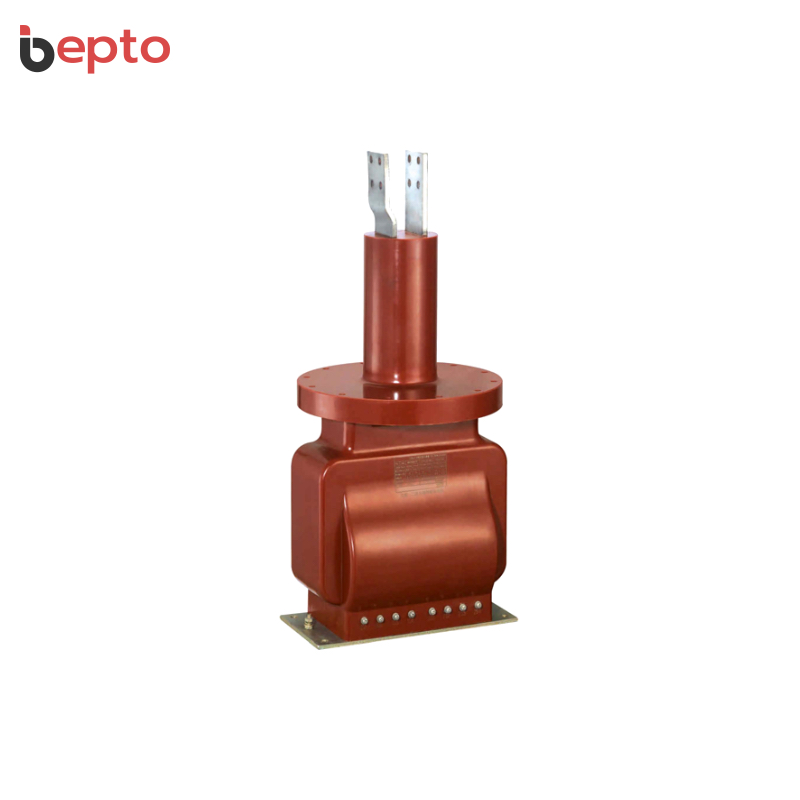

LZZBJ4-35 Current Transformer 35kV Indoor CT – 50-1600A Multi-Ratio 0.2/0.5/10P/5P Class 120×In Thermal 300×In Dynamic 40.5/95/185kV Epoxy Resin GB1208 IEC60044-1
LZZBJ4-35 Current Transformer 35kV Indoor CT: 50-1600A multi-ratio, 0.2/0.5/10P10/10P15/5P20 accuracy class, 120×In thermal capacity for 50-200A, 300×In dynamic current, 40.5/95/185kV insulation level, quad winding, 15-50VA burden, 5A/1A secondary, 50/60Hz, GB1208 IEC60044-1, metering & protection.

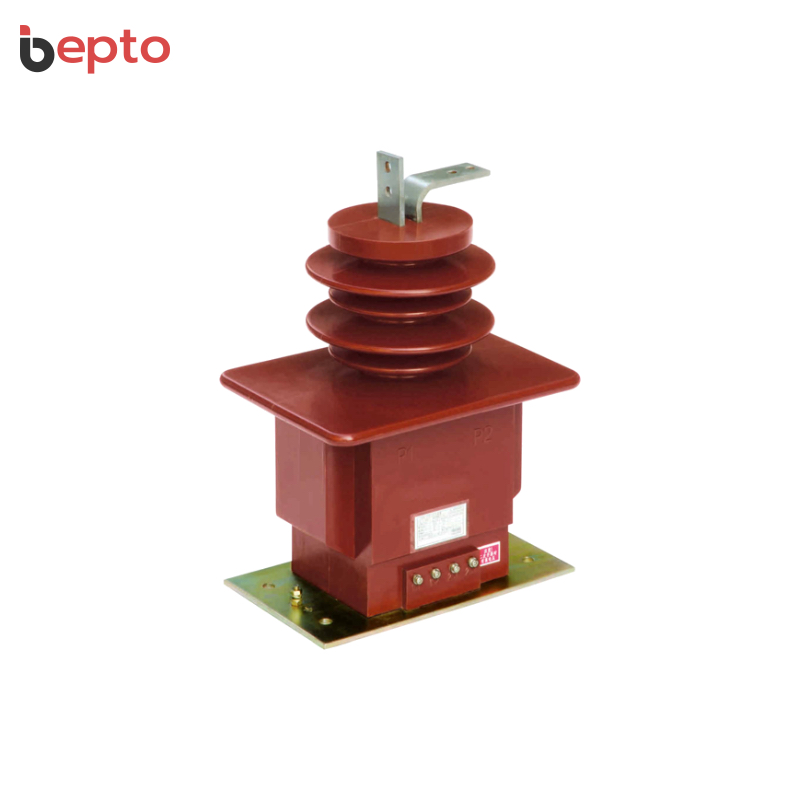

LZZB7-35 Current Transformer 35kV Medium Voltage CT – 50-2000A 0.2S/0.5S/10P10 Class 40.5/95/185kV Insulation Indoor Epoxy Resin GB1208 IEC60044-1
LZZB7-35 Current Transformer 35kV Medium Voltage CT: 50-2000A primary current, 0.2S/0.5S/10P10 accuracy class, 40.5/95/185kV insulation level, 15-30VA burden, short-time thermal current 8-80kA, rated dynamic current 20-130kA, 5A/1A secondary, 50/60Hz, GB1208 IEC60044-1, metering & protection.

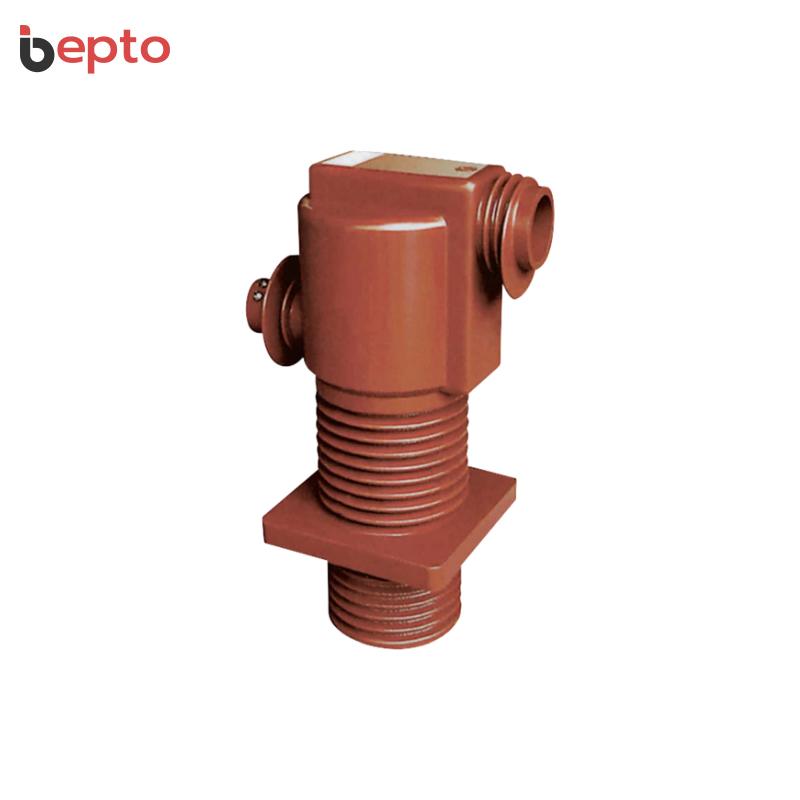

LDJ1-35H/300 Current Transformer 35kV Indoor Epoxy Resin – 5-2000A 0.2S/0.5S/5P Class 150×In Thermal 375×In Dynamic 40.5/95/185kV Multi-Winding GB1208 IEC60044-1
LDJ1-35H/300 Current Transformer 35kV Indoor Epoxy Resin: 5-2000A primary current, multi-winding configuration, 0.2S/0.5S/5P10/5P15/5P20 accuracy class, 150×In thermal capacity for 5-300A, 375×In dynamic current, 40.5/95/185kV insulation, 5A/1A secondary, 50/60Hz, GB1208 IEC60044-1, metering & protection.

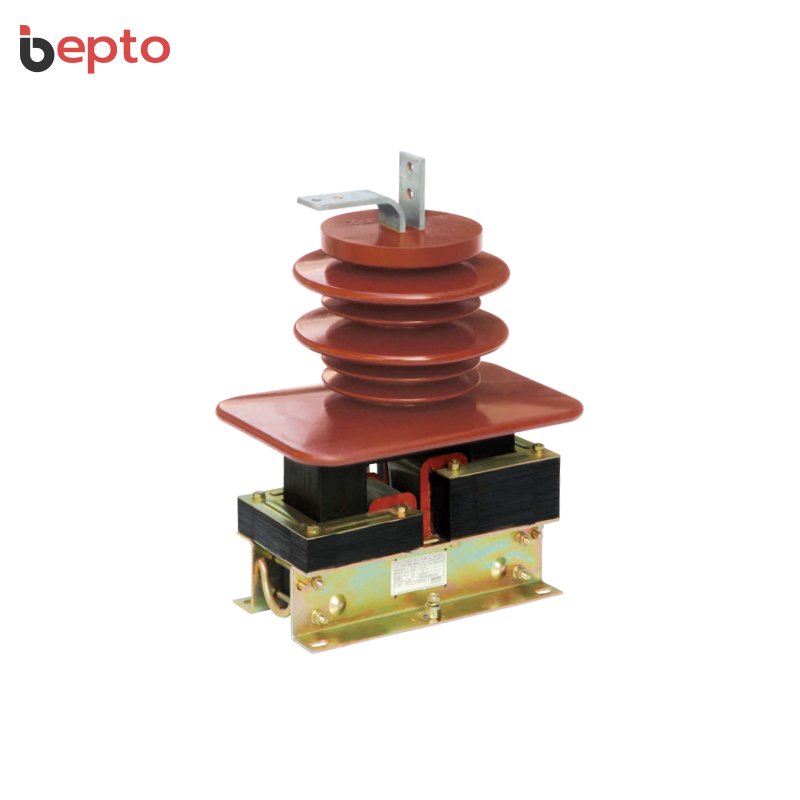

LCZ-35 Current Transformer 35kV Indoor Epoxy Resin – 15-1200A 0.2S/0.5S/10P Class 40.5/95/185kV Insulation Dual Winding GB1208 IEC60044-1
LCZ-35 Current Transformer 35kV Indoor Epoxy Resin: 15-1200A primary current, dual winding configuration, 0.2S/0.5S/10P10/10P15/10P20 accuracy class, 40.5/95/185kV insulation level, 30-50VA burden capacity, 5A/1A secondary, 50/60Hz, GB1208 IEC60044-1 compliant, metering & relay protection.
35kV Sensor Insulator CG5 Series 8 Models – High Current Sensors 130×320-380 145×320-380mm 95kV 185kV HV Breaker Switchgear Substation
CG5-35kV Sensor Insulator: 8 models high current sensors 130×320-380/145×320-380mm, 2000A-3150A, 95kV withstand 185kV impulse, epoxy resin for HV breaker switchgear substation.
