JLSZYO-35W Outdoor Dry Type Combined CT PT Metering Box 35kV Three-Phase High Voltage – Y-Connection Epoxy Resin Casting 5-600/5A Multi-Tap 0.2S/0.5 Class Pillar Type 40.5/95/185kV Insulation Anti-Tamper GB17201 GB1208 GB1207
JLSZYO-35W Outdoor Dry Type Combined CT PT Metering Box: 35kV, outdoor three-phase dry type epoxy resin casting, Y-connection pillar type, multi-tap current transformer 5-600/5A, 33-35kV/100V voltage ratio, 0.2S/0.5 accuracy class, pollution class II, 40.5/95/185kV insulation, anti-tamper design, maintenance-free, 50Hz, GB17201 GB1208 GB1207.
JLSZV-35 Outdoor Three-Phase Combined CT PT Metering Box 35kV High Voltage Energy Measuring Unit – Epoxy Resin Casting 5-600/5A 33-35kV/100V 0.2S/0.5 Class Pollution IV Anti-Tamper 40.5/95/185kV Insulation GB17201
JLSZV-35 Outdoor Three-Phase Combined CT PT Metering Box: 35kV, outdoor three-phase epoxy resin casting, 5-600/5A current ratio, 33-35kV/100V voltage ratio, 0.2S/0.5 accuracy class, pollution class IV, 40.5/95/185kV insulation, anti-tamper design, maintenance-free, 50-60Hz, GB17201.
JLS-6/10/24/35 Outdoor Combined CT PT Metering Box High Voltage Power Metering Unit – Integrated Current Voltage Transformer with Watt-Hour Meter 0.2/0.5/0.2S/0.5S Class Oil-Immersed 5-300/5A 40.5/95/185kV GB17201
JLS-6/10/24/35 Outdoor Combined CT PT Metering Box: 6kV/10kV/24kV/35kV, outdoor oil-immersed combined current and voltage transformer with integrated watt-hour meter box, 5-300/5A current ratio, 3kV-35kV/100V-110V voltage ratio, 0.2/0.5/0.2S/0.5S accuracy class, 3.6-40.5/24-95/75-185kV insulation, anti-tamper design, 50-60Hz, GB17201.
JDZX11-35R Indoor Single-Phase Voltage Transformer 35kV Epoxy Resin Casting PT – 100V/√3+100V/3 Dual/Triple Secondary Grounding Protection 0.2/0.5/1/3/6P Class 600VA Max Output 40.5/95/200kV Insulation GB1207
JDZX11-35R Indoor Single-Phase Voltage Transformer: 35kV, indoor single-phase epoxy resin casting, 35kV/√3/100V/√3+100V/3 or 100V/√3+100V/√3+100V/3 ratio, dual/triple secondary winding, grounding protection, 0.2/0.5/1/3/6P accuracy class, 40.5/95/200kV insulation, 600VA max output, compact design, 50-60Hz, GB1207 IEC60044-2.

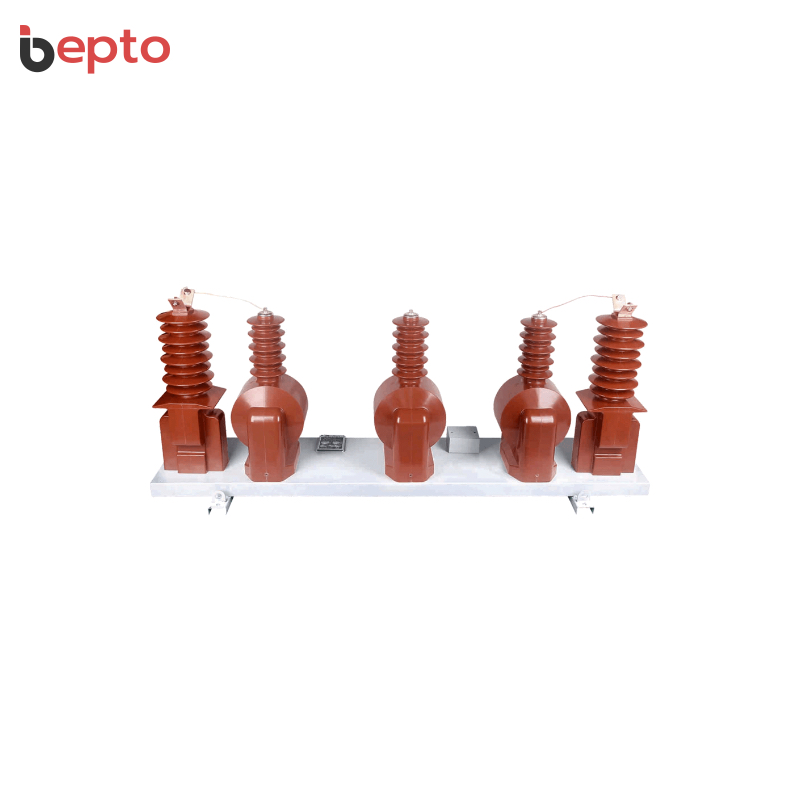

JLSZY-35 Outdoor Combined Transformer 35kV CT PT Metering Unit – Current Voltage Transformer 5-600/5A 35kV/100V Epoxy Resin Casting 0.2S/0.5 Class 350VA Energy Metering Box Y/Y Connection GB1208 GB1207
JLSZY-35 Outdoor Combined Transformer 35kV CT PT Metering Unit: 35kV high voltage, outdoor epoxy resin casting, combined current and voltage transformer, 5-600/5A CT ratio, 35kV/100V PT ratio, 0.2S/0.5 accuracy class, 350VA thermal output, Y/Y connection, energy metering box, anti-tamper, pillar-type structure, 50Hz, GB1208 GB1207 GB17201.
JSZW-35 Outdoor Three-Phase Voltage Transformer 35kV Epoxy Resin Casting PT – German CY1680 Fully Enclosed 100V/√3+100V/√3 Dual Secondary 0.2/0.5/3P Class 600VA High Output 40.5/95/185kV Insulation GB1207
JSZW-35 Outdoor Three-Phase Voltage Transformer 35kV Epoxy Resin Casting PT: German CY1680 epoxy resin, fully enclosed pillar-type structure, 35kV/√3/100V/√3+100V/√3 dual secondary ratio, 0.2/0.5/3P accuracy class, 40.5/95/185kV insulation level, 600VA high output, pollution-resistant, UV-resistant, warm zone suitable, compact three-phase integrated, 50Hz, GB1207-2006.
JDZX9-35 Indoor Voltage Transformer 35kV Single-Phase Epoxy Resin Casting PT – Phase-to-Ground 100V/√3+100V/3 Triple Secondary 0.2/0.5/1/3/6P Class Open Delta Grounding Protection 1000VA High Output 40.5/95/200kV GB1207
JDZX9-35 Indoor Voltage Transformer 35kV Single-Phase Epoxy Resin Casting PT: Phase-to-ground measurement, 35kV/√3/100V/√3+100V/3 ratio, triple secondary winding, open delta grounding protection, 0.2/0.5/1/3/6P accuracy class, pillar-type fully enclosed, 40.5/95/200kV insulation, 1000VA max output, 1-second short circuit withstand, 50-60Hz, GB1207 IEC60044-2.

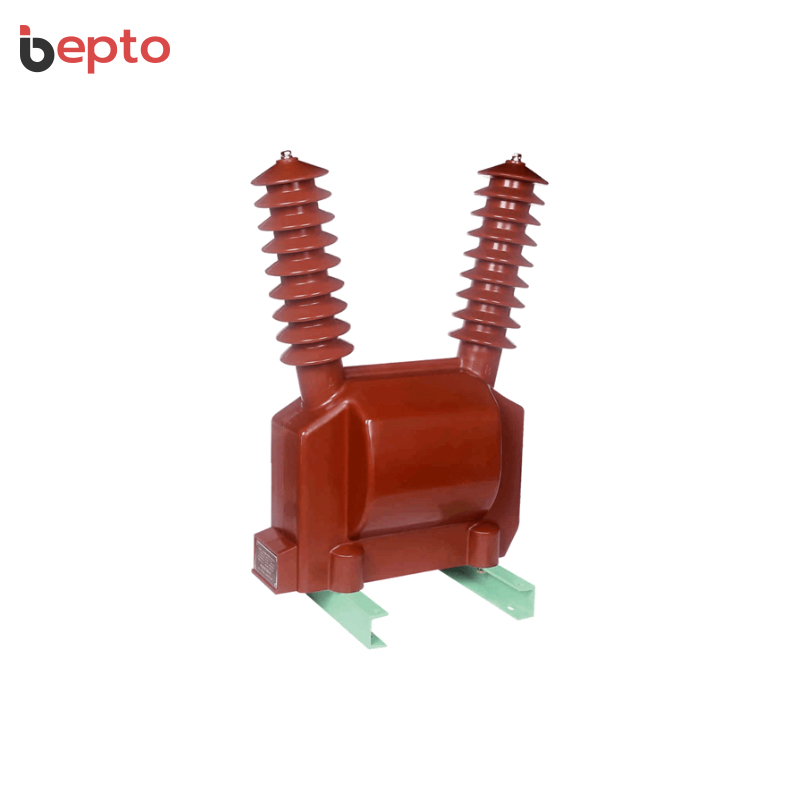

JDZW-35 Outdoor Voltage Transformer 35kV Single-Phase Epoxy Resin Casting PT – Swiss Ciba CW5837 Fully Enclosed 0.2/0.5 Class Dual Secondary 1000VA High Output 40.5/95/200kV Insulation
JDZW-35 Outdoor Voltage Transformer 35kV Single-Phase Epoxy Resin Casting PT: Swiss Ciba CW5837 epoxy resin, fully enclosed hermetically sealed, 35kV/0.1kV ratio, 0.2/0.5 accuracy class, dual secondary option, pillar-type structure, 40.5/95/200kV insulation level, 1000VA high output, arc-resistant, UV-resistant, anti-aging, 50-60Hz, GB1207 IEC60044-2.
JDX6-35 Voltage Transformer 35kV Outdoor Single-Phase Oil-Immersed PT – 35kV/100V Ratio 0.2/0.5/1/6P Class Three-Column Core Fully Sealed 40.5/95/200kV Insulation 1000VA Max Output Oil Conservator GB1207 IEC60044-2
JDX6-35 Voltage Transformer 35kV Outdoor Single-Phase Oil-Immersed PT: 35kV/100V voltage ratio, 0.2/0.5/1/6P accuracy class, three-column core, fully sealed structure with oil conservator, dual secondary winding option, 40.5/95/200kV insulation level, 75-250VA burden, 1000VA max output, 50-60Hz, GB1207 IEC60044-2, prevents oil aging.
JD(J)2-35 Voltage Transformer 35kV Outdoor Single-Phase Oil-Immersed PT – 35kV/100V Ratio 0.2/0.5/1/6P Class Three-Pole Silicon Steel Core 40.5/95/200kV Insulation 1000VA Max Output
JD(J)2-35 Voltage Transformer 35kV Outdoor Single-Phase Oil-Immersed PT: 35kV/100V voltage ratio, 0.2/0.5/1/6P accuracy class, three-pole silicon steel core, dual secondary winding option, 40.5/95/200kV insulation level, 75-250VA burden, 1000VA max output, 50-60Hz, GB1207 IEC60044-2, ideal for metering, monitoring, and protection.
