LZW32-12 Outdoor Pole Mounted Current Transformer for ZW32 Vacuum Circuit Breaker – 12kV Dry Type CT 50-1000A 0.2S/0.5/5P/10P Class 12/42/75kV Insulation 3.75-20VA Burden GB1208 IEC60044-1
LZW32-12 Outdoor Pole Mounted Current Transformer for ZW32 Vacuum Circuit Breaker: 12kV dry type CT, 50-1000A primary current, 0.2S/0.5/5P/10P accuracy class, 12/42/75kV insulation level, 3.75-20VA burden capacity, designed for ZW32 series high voltage vacuum circuit breaker, 5A/1A secondary, 50-60Hz, GB1208 IEC60044-1.

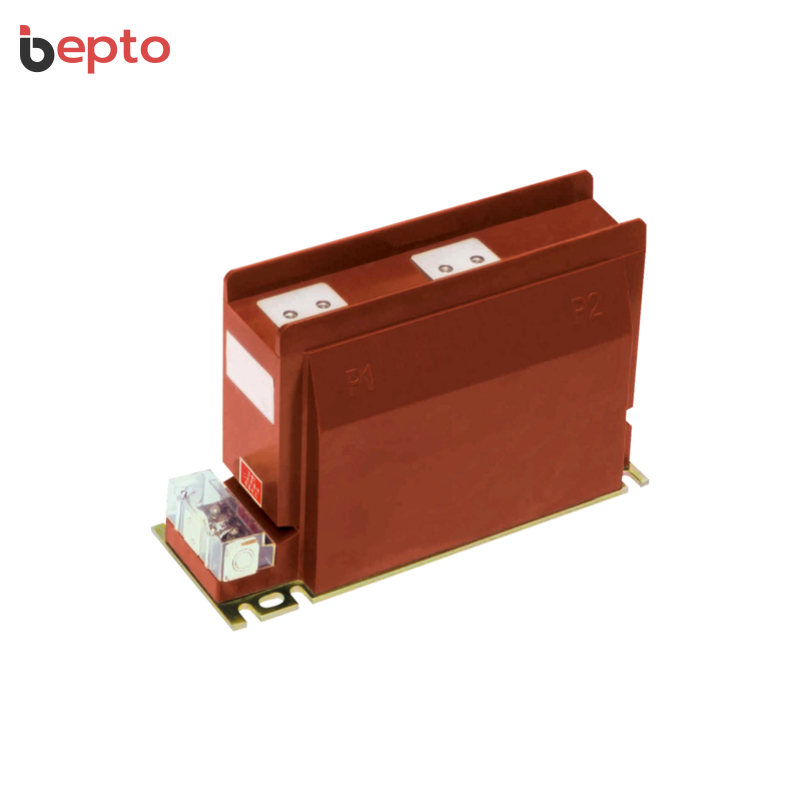

LZZBJ9-12 Current Transformer 12kV Indoor CT – 5-1250A 0.2S/0.5/10P/5P Class 150×In Thermal 375×In Dynamic Dual/Quad Winding 12/42/75kV Epoxy Resin GB1208 IEC60044-1
LZZBJ9-12/150b/2 & LZZBJ9-12/150b/4 Current Transformer 12kV Indoor CT: 5-1250A primary current, 0.2S/0.5/10P10/10P15/5P accuracy class, 150×In thermal capacity for 20-100A, 375×In dynamic current, 12/42/75kV insulation level, dual/quad winding, 10-30VA burden, 5A/1A secondary, 50/60Hz, GB1208 IEC60044-1.
EK6-12/31.5 Indoor AC HV Combined Earthing Switch 12kV 630-2000A – Smart Grounding Switch 80kA Making 42kV Power Frequency 75kV Lightning ISO Certified
EK6-12/31.5 Indoor AC HV Combined Earthing Switch 12kV 630-2000A: Smart grounding switch, 31.5kA short-time withstand, 80kA making current, 42kV power frequency, 75kV lightning impulse, resin insulator, silver-plated copper 99.9%, 4s withstand time, 2000 times life, ISO certified, GB1985 IEC129 compliant.
JN17-12/40 Indoor HV AC Earthing Switch 12kV 40kA – MV Switchgear Ground Knife 100kA Making Current 42kV Power Frequency 75kV Lightning Manual Motorized
JN17-12/40 Indoor HV AC Earthing Switch 12kV 40kA: MV switchgear ground knife, 100kA making current, 42kV power frequency, 75kV lightning impulse, manual/motorized type, resin insulator, silver-plated copper 99.9%, 4s withstand time, 2000 times life, CE certified, GB1985 IEC129 compliant.
JN15 Indoor AC HV Earthing Switch 12-40.5kV 31.5kA – Short-Circuit Making Capacity 80kA 65kV Power Frequency 125kV Lightning Impulse Resin Insulator
JN15 Indoor AC HV Earthing Switch 12-40.5kV 31.5kA: Short-circuit making capacity 80kA, 65kV power frequency withstand voltage, 125kV lightning impulse, resin insulator, silver-plated copper 99.9%, 4s withstand time, 2000 times life, GB1985 IEC62271 compliant, three-phase AC 50Hz switchgear protection.
GW9 Outdoor HV Isolator Switch 10-20kV 400-1250A – Hookstick Type Transmission Line Non-Load Shifting Copper Aluminum Stainless Steel 20-31.5kA
GW9 Outdoor HV Isolator Switch 10-20kV 400-1250A: Hookstick type, three-phase AC 50Hz, transmission line non-load shifting, busbar maintenance, circuit breaker isolation, copper aluminum annex, stainless steel firmware, hot plating zinc base, anti-dirt resistance corrosion, 20-31.5kA withstand, 50-80kA peak.
GW1 Outdoor AC HV Disconnect Switch 12-40.5kV 630-1250A – Three-Pole Linkage IEC62271-103 Anti-Pollution Type 50/60Hz 20-25kA 2000 Life
GW1 Outdoor AC HV Disconnect Switch 12-40.5kV 630-1250A: Three-pole linkage, IEC62271-103 compliant, anti-pollution type, 50/60Hz, good synchronous performance, 20-25kA withstand, 50-63kA peak, 2000 mechanical life, 3000m altitude, -30°C to +40°C, 35m/s wind, Class IV pollution, 10mm ice.

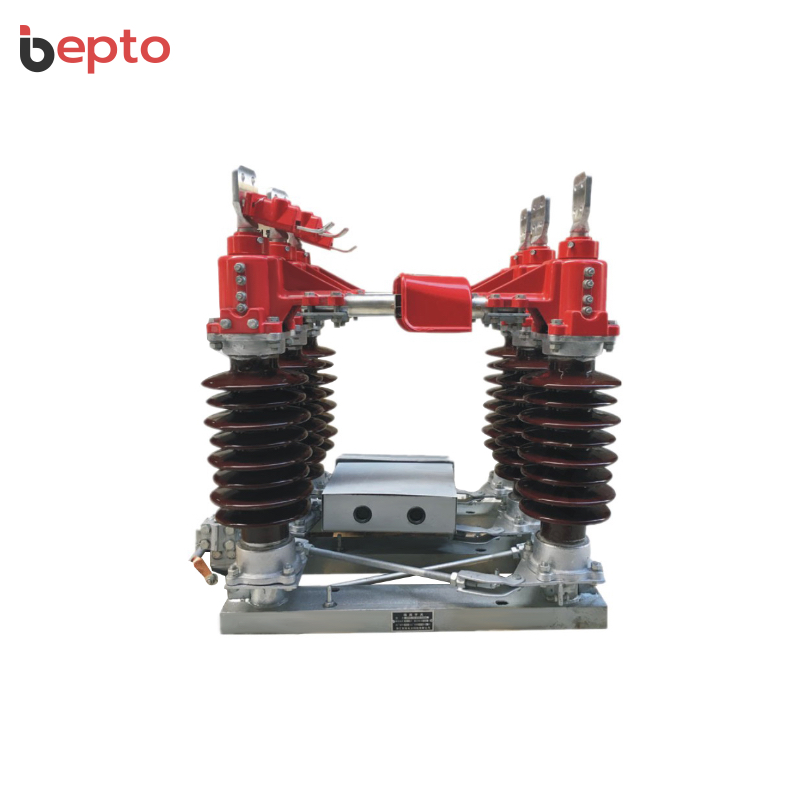

GW4 Outdoor HV Disconnector 12-40.5kV 200-1250A – Fixed Draw Hook Self-Locking Insulating Hook-Stick Anti-Pollution Type Class IV 16-31.5kA
GW4 Outdoor HV Disconnector 12-40.5kV 200-1250A: Fixed draw hook, self-locking device, insulating hook-stick operation, anti-pollution type, Class IV pollution level, 16-31.5kA withstand, 40-80kA peak, 3000m altitude, -40°C to +40°C, 35m/s wind speed, earthquake degree 8.

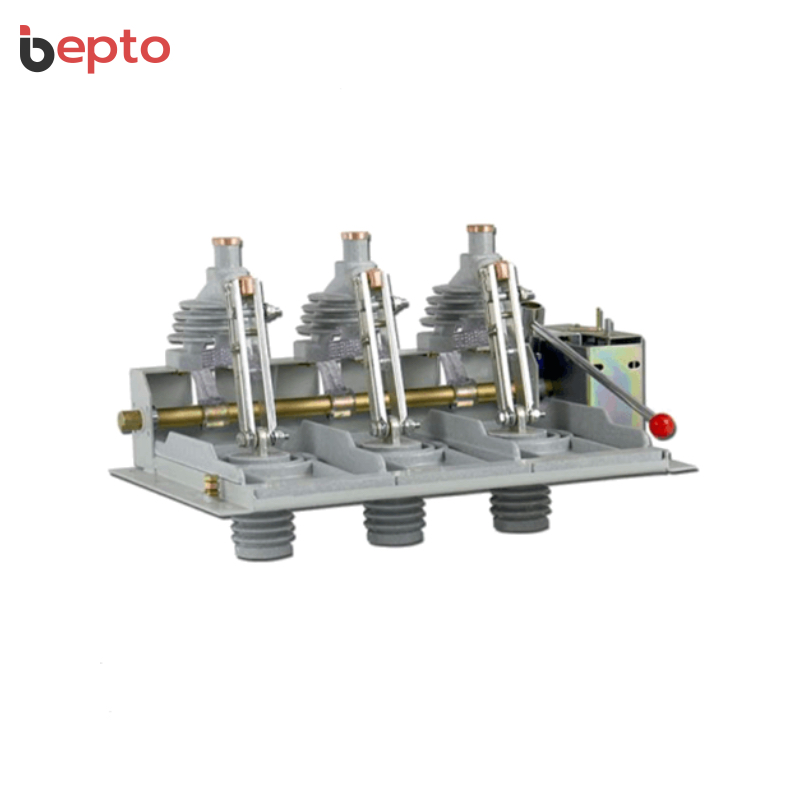

GN38-12 Indoor HV Disconnecting Switch 12kV 630-1250A – Three-Position Compact Box Switchgear Fully Insulated Baseplate Coaxial Locking 25-31.5kA
GN38-12 Indoor HV Disconnecting Switch 12kV 630-1250A: Three-position structure, compact box switchgear, fully insulated baseplate, coaxial locking, mechanical interlocking, small-sized design, 25-31.5kA thermal stability, 63-80kA dynamic current, 42kV/48kV frequency withstand, 75kV/85kV impulse.
GN30-12 Indoor Rotary Grounding Disconnector 12kV 400-3150A – Three-Phase Cabinet Mounted IEC62271-102 No-Load Transfer Switch 4s Duration
GN30-12 Indoor Rotary Grounding Disconnector 12kV 400-3150A: Three-phase AC 50/60Hz, rotary moving contact, cabinet mounted, wall through installation, IEC62271-102 compliant, no-load transfer, 12.5-40kA withstand, 31.5-100kA peak, 42kV/49kV frequency withstand, 75kV/85kV impulse.
