Product Category: Current Transformer(CT)

LB5-66kV Oil-Immersed Current Transformer High Voltage CT – Dual-Ratio 2×25-2×1000/5A Metering Tap 0.2S/0.2/0.5/P Class Porcelain Tank Oil-Paper Insulated 72.5/140/325kV 50kA Thermal 125kA Dynamic

LB5-66kV Oil-Immersed Current Transformer High Voltage CT: Dual-ratio 2×25-2×1000/5A with metering tap, 0.2S/0.2/0.5/P accuracy class, fully sealed porcelain tank oil-paper insulated chain structure, three or four secondary windings, 72.5/140/325kV insulation level, 2.7-50kA thermal current, 6.8-125kA dynamic current, 50Hz, ideal for 66kV power systems.

LCWB5-66kV Current Transformer High Voltage CT – Dual-Ratio 2×25-2×1000/5A Oil-Paper Insulated 0.2S/0.5/5P/10P Class Porcelain Tank Chain Structure 72.5/140/325kV 50kA Thermal 125kA Dynamic

LCWB5-66kV Current Transformer High Voltage CT: Dual-ratio 2×25-2×1000/5A, 0.2S/0.5/5P/10P accuracy class, fully sealed porcelain tank oil-paper insulated chain structure, three or four secondary windings, 72.5/140/325kV insulation level, 2.7-50kA thermal current, 6.8-125kA dynamic current, 50Hz, ideal for 66kV power systems.

LZZBW-35B(GY) Outdoor Current Transformer 35kV Medium Voltage CT – 20-2000A Triple Winding 0.2S/0.5/5P20 Class 150×In Thermal 375×In Dynamic Epoxy Resin Casting 40.5/95/185kV

LZZBW-35B(GY) Outdoor Current Transformer 35kV Medium Voltage CT: 20-2000A primary current, 0.2S/0.5/5P20 accuracy class, triple winding configuration, 150×In thermal capacity for 20-100A, 375×In dynamic current, 40.5/95/185kV insulation level, 10-40VA burden, epoxy resin casting, 5A/1A secondary, 50-60Hz, GB1208 IEC60044-1.

LZZBW-10(GY) Outdoor Dry Type Current Transformer 10kV Support Type CT – 20-600A Dual-Ratio 0.2/0.5/10P10 Class Oil-Free Epoxy Resin Casting 12/42/75kV Pollution Class II Unattended Substation GB1208-2006

LZZBW-10(GY) Outdoor Dry Type Current Transformer 10kV Support Type CT: 20-600A primary current, 0.2/0.5/10P10 accuracy class, dual-ratio configuration 2×5-2×300A, oil-free epoxy resin casting, 12/42/75kV insulation level, pollution class II, 10-15VA burden, maintenance-free, 5A/1A secondary, 50Hz, GB1208-2006, ideal for unattended substations.

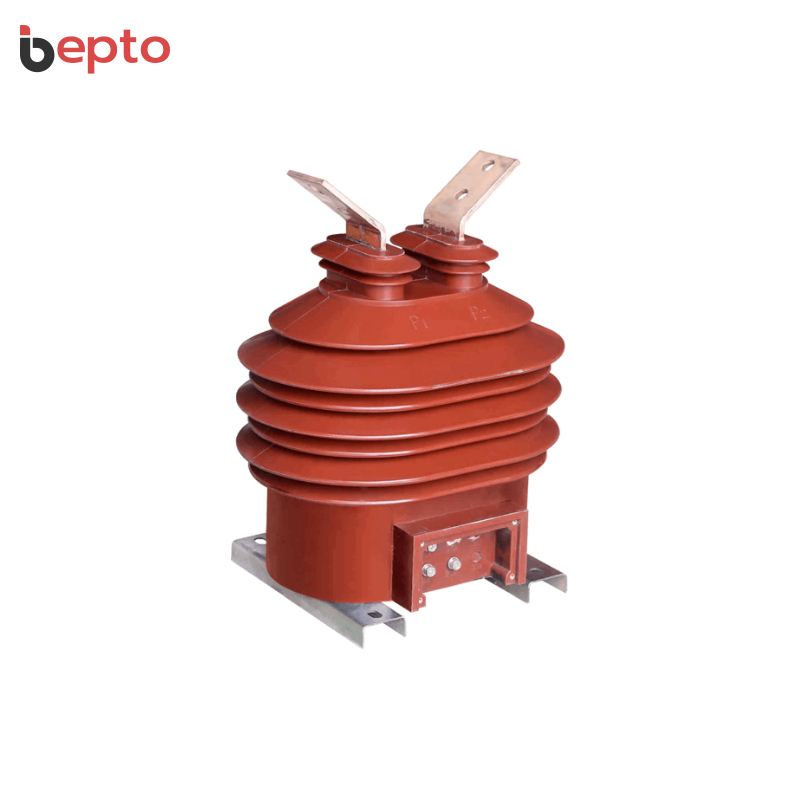

LZZBW-10 Support Type Current Transformer 10kV Outdoor Full-Enclosed CT – 10-1500A Multi-Ratio 0.2S/0.5/10P10/10P20 Class Swiss CIBA Epoxy Resin 12/42/75kV Pollution Class IV

LZZBW-10 Support Type Current Transformer 10kV Outdoor Full-Enclosed CT: 10-1500A primary current, 0.2S/0.5/10P10/10P20 accuracy class, multi-ratio configuration, Swiss CIBA CW5837 epoxy resin, 12/42/75kV insulation level, pollution class IV, 10-20VA burden, arc/UV/aging resistant, 5A/1A secondary, 50-60Hz, GB1208 IEC60044-1.

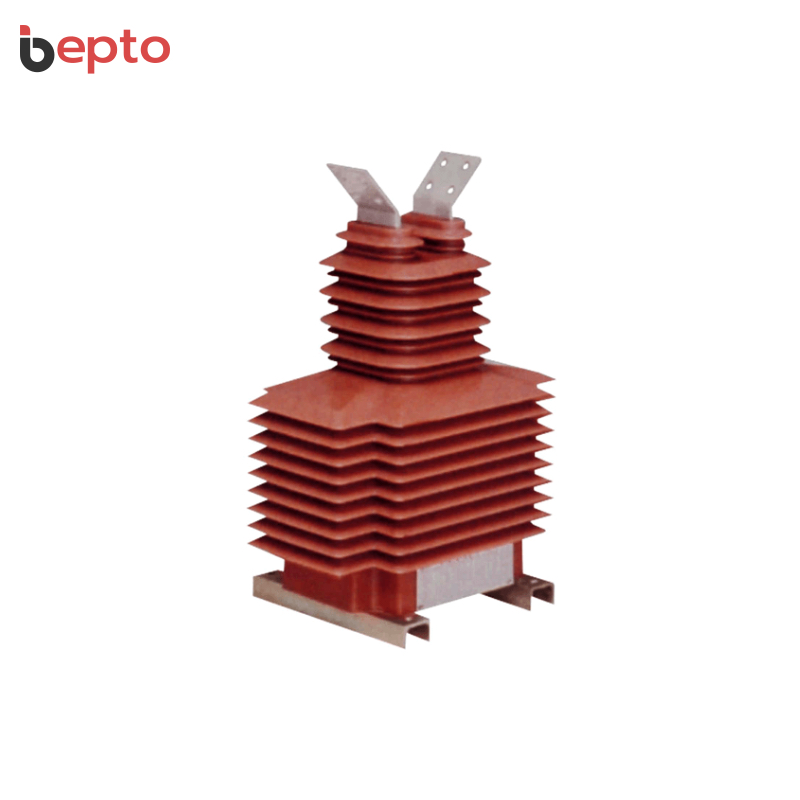

LZZB(J)71-35W2 GY Support Type Current Transformer 35kV Outdoor Full-Closed CT – 30-2000A Triple Winding 0.2S/0.2/0.5/10P10 Class 150×In Thermal 375×In Dynamic Resin Casting 40.5/95/185kV

LZZB(J)71-35W2 GY Support Type Current Transformer 35kV Outdoor Full-Closed CT: 30-2000A primary current, 0.2S/0.2/0.5/10P10 accuracy class, triple winding configuration, 150×In thermal capacity for 30-100A, 375×In dynamic current, 40.5/95/185kV insulation, 15-50VA burden, resin casting, 5A/1A secondary, 50-60Hz, GB1208 IEC60044-1.

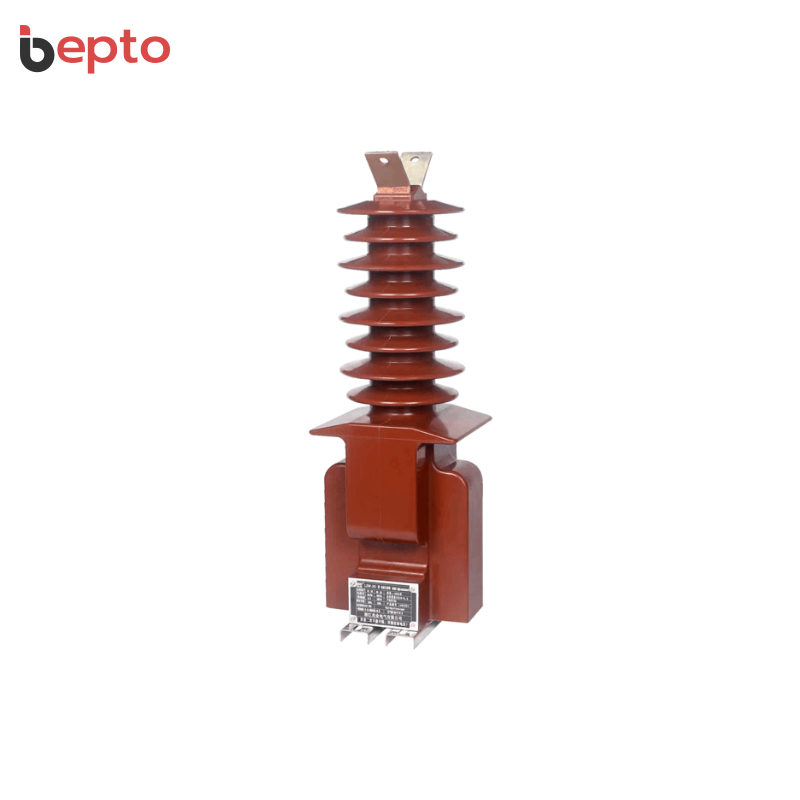

LZW-35 Outdoor Current Transformer 35kV Medium Voltage CT – 10-2000A Dual Winding 0.2S/0.5/5P20 Class 200×In Thermal 500×In Dynamic Epoxy Resin Casting 40.5/95/185kV

LZW-35 Outdoor Current Transformer 35kV Medium Voltage CT: 10-2000A primary current, 0.2S/0.5/5P20 accuracy class, dual winding configuration, 200×In thermal capacity for 10-100A, 500×In dynamic current, 40.5/95/185kV insulation level, 15-30VA burden, epoxy resin casting, 5A/1A secondary, 50-60Hz, GB1208 IEC60044-1.

LZW32-12 Outdoor Pole Mounted Current Transformer for ZW32 Vacuum Circuit Breaker – 12kV Dry Type CT 50-1000A 0.2S/0.5/5P/10P Class 12/42/75kV Insulation 3.75-20VA Burden GB1208 IEC60044-1

LZW32-12 Outdoor Pole Mounted Current Transformer for ZW32 Vacuum Circuit Breaker: 12kV dry type CT, 50-1000A primary current, 0.2S/0.5/5P/10P accuracy class, 12/42/75kV insulation level, 3.75-20VA burden capacity, designed for ZW32 series high voltage vacuum circuit breaker, 5A/1A secondary, 50-60Hz, GB1208 IEC60044-1.

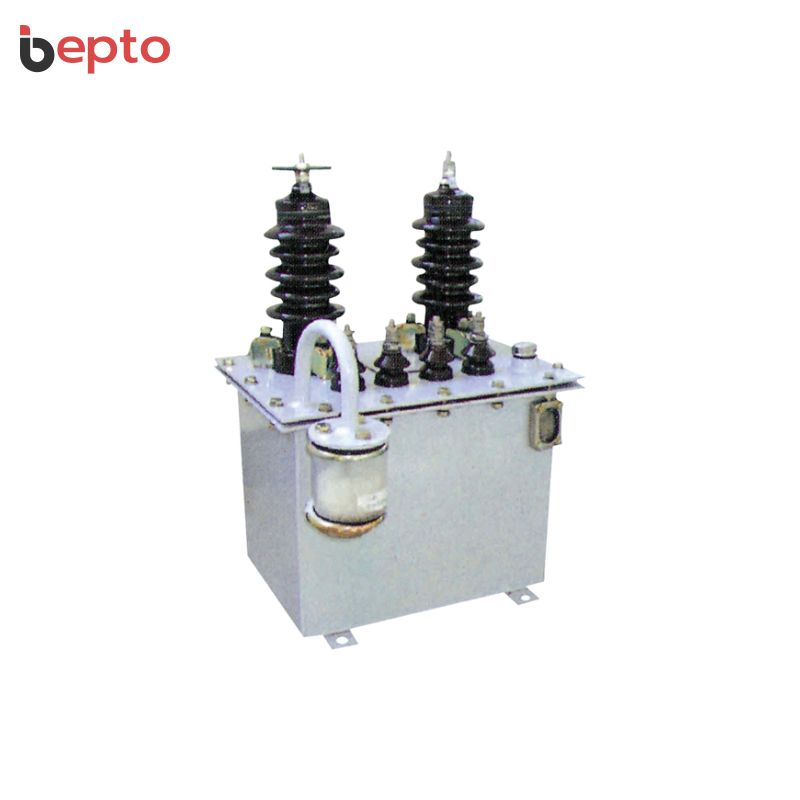

LJW-10/35 LJWD-10/35 Current Transformer Indoor Outdoor Dual-Use Oil-Immersed CT – 10kV/35kV 5-600A 0.2/0.5/1/3D Class Steel Tank 75× Thermal 187.5× Dynamic 40.5/95/185kV GB1208 IEC60044-1

LJW-10/35 LJWD-10/35 Current Transformer Indoor Outdoor Dual-Use Oil-Immersed CT: 10kV/35kV, 5-600A primary current, 0.2/0.5/1/3D accuracy class, steel tank oil-immersed, 75× thermal stability, 187.5× dynamic stability, 40.5/95/185kV insulation, 10-50VA burden, 5A secondary, 50Hz, GB1208 IEC60044-1.

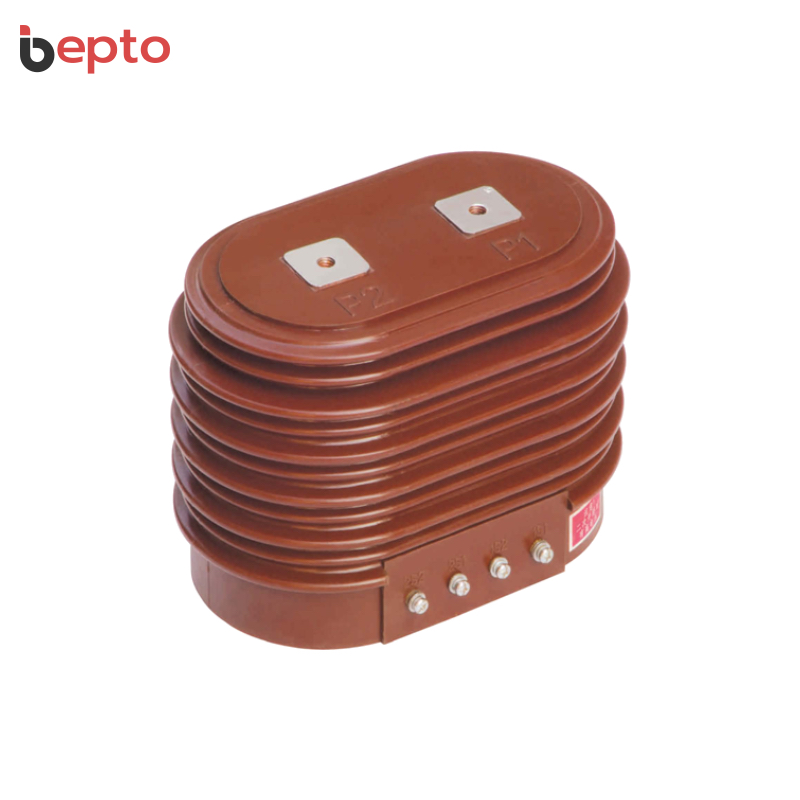

LZZJ-10Q Current Transformer 10kV Indoor CT – 5-1600A Dual Winding 0.2S/0.5/10P10 Class Epoxy Resin Casting 12/42/75kV Insulation 10-30VA Burden 5A/1A Secondary GB1208 IEC60044-1

LZZJ-10Q Current Transformer 10kV Indoor CT: 5-1600A primary current, 0.2S/0.2/0.5/10P10 accuracy class, dual winding configuration, 12/42/75kV insulation level, 10-30VA burden capacity, 1s thermal current 0.75-80kA, rated dynamic current 1.87-130kA, 5A/1A secondary, 50-60Hz, epoxy resin casting, GB1208 IEC60044-1.
